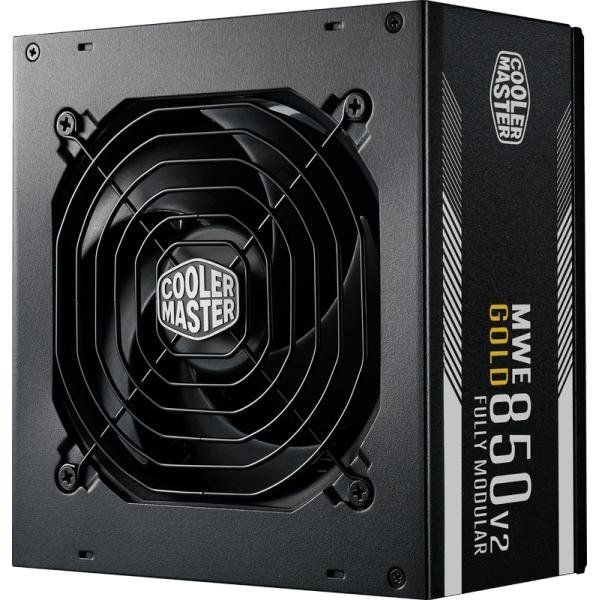

Cooler Master MWE Gold 850 V2 Power supply 850W (MPE-8501-AFAAG-3EEU)

Power management

• Total power: 850 W

• Efficiency: 90 %

• PFC type: Active

• Hold-up time: 16 ms

• Power protection description: Under voltage, Short circuit, Over voltage, Over total voltage, Overload, Over current

• Total current (+3.3V): 100 W

• Total current (+12V): 849.6 W

• Total current (+5V): 100 W

• Total current (-12V): 3.6 W

• Total current (+5Vsb): 15 W

• Max output current (+3.3V): 20 A

• Max output current (+12V): 70.8 A

• Max output current (+5V): 20 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3 A

• Input current: 6 – 12 A

• AC input frequency: 50/60 Hz

• AC input voltage: 100 – 240 V

Connectivity

• Motherboard power connector: 24-pin ATX

• ATX power connector: Yes

• SATA power connectors: 12

• Peripheral (Molex) power connectors (4-pin): 4

• EPS power connector (8-pin): Yes

• PCI Express power connector (6+2 pin): 4

• Cable type: Fully modular

• Motherboard power cable length: 610 mm

• SATA power cable lengths: 500, 620, 740, 860 mm

• Peripheral (Molex) cable lengths: 860, 500, 740, 620 mm

• EPS connector (4+4 pin): Yes

Performance

• Target: PC

• 80 PLUS certification: 80 PLUS Gold

• MTBF: 100,000 h

• Fan shaft type: HDB

• ATX version: 3.1

• PSU form factor: ATX

Design

• Fan diameter: 120 mm

• Number of fans: 1

• Cooling type: Active

• Fan position: Top

• Integrated on/off switch: Yes

• Product color: Black

Certificates

• Certification: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

Technical details

• Sustainability certifications: ErP

Weight & dimensions

• Weight: 2.62 kg

• Height: 86 mm

• Width: 150 mm

• Depth: 160 mm

Environmental conditions

• Operating temperature: 0 – 50 °C

Packaging information

• Package weight: 2,900 g

• Package depth: 310 mm

• Package height: 120 mm

• Package width: 194 mm

• Package type: Box
