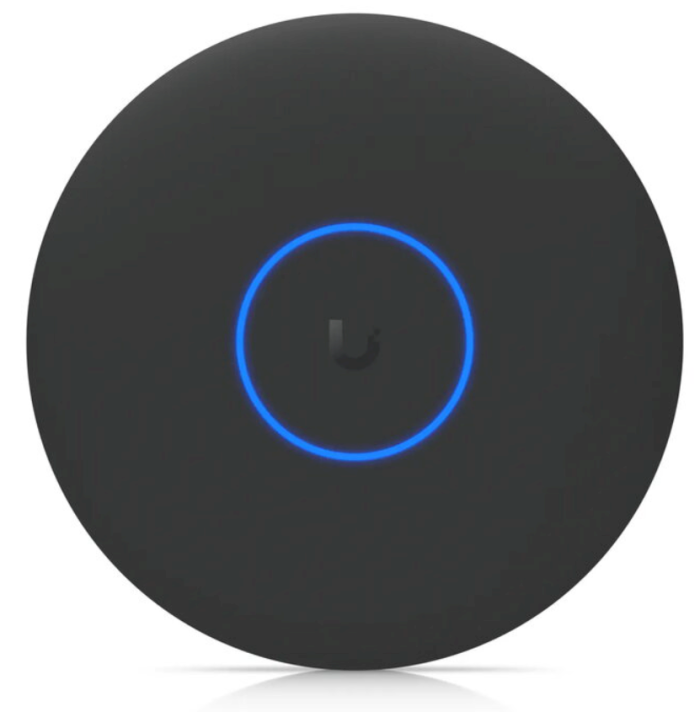

Ubiquiti U7 Pro XGS Wireless Access Point (810177162131)

Parameters
Weight: 0.8 kg
Ethernet LAN (RJ-45) Ports: 1
Maximum Data Transfer Rate: 8600 Mbit/s
Network Standard: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Product Color: Black

All Parameters

Features
Maximum Data Transfer Rate: 8600 Mbit/s
Frequency Bands: 2.4, 5, 6 GHz
Number of Users: 500 users
Network Standard: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Speed Limiting_ Yes
Ethernet LAN Data Rates: 1000, 2500, 5000, 10000 Mbit/s
VLAN Support: Yes
2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
MIMO: Yes
Fast Roaming_ Yes
Band Steering_ Yes
MIMO Type: Multi User MIMO
Maximum Data Rate (2.4 GHz): 688 Mbit/s
Maximum Data Rate (5 GHz): 8600 Mbit/s
Maximum Data Rate (6 GHz): 5800 Mbit/s
Fit AP Mode Features: Hotspot 2.0
Maximum Transmit Power (2.4 GHz): 23 dBm
Maximum Transmit Power (5 GHz): 29 dBm
Maximum Transmit Power (6 GHz): 24 dBm
Spatial Streams: 8
Coverage Area: 160 m²
Wireless Mesh Network: Yes

Antenna
Antenna Type: Internal
Maximum Antenna Gain: 6 dBi

Environmental Conditions
Operating Relative Humidity: 5 - 95 %
Operating Temperature: -30 - 40 °C

Weight & Dimensions
Weight: 0.8 kg
Height: 215 mm
Width: 215 mm
Depth: 32.5 mm

Connectivity
Ethernet LAN (RJ-45) Ports: 1

Power Management
Power over Ethernet (PoE): Yes
Power Consumption (max): 29 W
PoE Support: PoE++ (4PPoE)

Package Contents
Mounting Kit: Yes
Units in Package: 1 pcs

Design
LED Indicators: Status
Product Color: Black
Reset Button: Yes
Case Material: Metal, Polycarbonate (PC)
Placement: Ceiling, Wall

Security
Supported Security Algorithms: PPSK

Management
Access Point Management: Wi-Fi Scheduling
