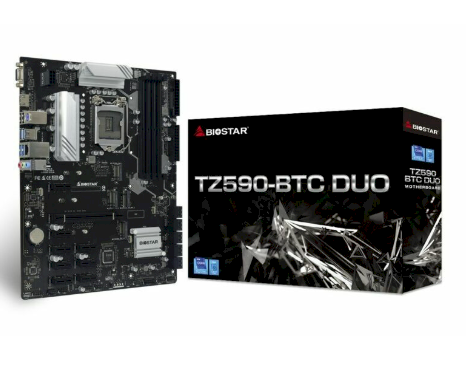

Biostar TZ590-BTC DUO Motherbord (TZ590-BTC)

Chipset
Intel Z590

CPU Support
Supports 10th and 11th Generation Intel Core™ i9 / i7 / i5 / i3 processors, as well as Intel Pentium and Intel Celeron processors in the LGA1200 socket
Please refer to the manufacturer’s website for the CPU support list

Memory
Supports Dual Channel DDR4 3600 (OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133
4 x DDR4 DIMM slots
Maximum capacity up to 128 GB
Supports non-ECC 4 / 8 / 16 / 32 GB DDR4 modules
Supports Intel XMP memory profiles

Integrated Graphics
Depends on CPU model
Supports DirectX 12
Supports HDCP

Storage Support
Total support for 4 x M.2 slots and 10 x SATA III (6 Gb/s) ports

10 x SATA III connectors

M.2 sockets:
M2_PCIEG4_64G_1 – PCIe Gen4 x4 (11th Gen Intel CPUs only), M.2 2280, NVMe / AHCI
M2_PCIEG4_64G_2 – PCIe Gen4 x4 (11th Gen Intel CPUs only), M.2 2280, NVMe / AHCI
M2_PCIEG3_32G_RST_1 – PCIe Gen3 x4, M.2 2280, NVMe / AHCI
M2_PCIEG3_32G_RST_2 – PCIe Gen3 x4, M.2 2280, NVMe / AHCI

Supports Intel Rapid Storage Technology and Intel Optane
Specifications may vary depending on CPU type

LAN
Intel I219V
10 / 100 / 1000 Mb/s
Auto negotiation, half / full duplex

Audio Codec
Realtek ALC887
7.1-channel High Definition Audio

USB Ports
6 x USB 3.2 Gen1 (4 rear, 2 via internal header)
6 x USB 2.0 (2 rear, 4 via internal headers)

Expansion Slots
8 x PCIe 3.0 x1
1 x PCIe 4.0 x16 (x8 mode, 11th Gen Intel CPUs only)

Rear I/O Ports
PS/2 keyboard/mouse port
HDMI port
VGA port
4 x USB 3.2 Gen1
2 x USB 2.0
LAN port
3 x audio jacks

Internal Connectors
10 x SATA III
2 x USB 2.0 headers
1 x USB 3.2 Gen1 header
1 x 8-pin CPU power connector
2 x 24-pin power connectors
CPU fan connector
CPU water cooling connector
System fan connector
Front panel header
Front audio header
Speaker header
Clear CMOS header
COM port header
TPM header

Hardware Monitoring
CPU and system temperature monitoring
CPU and system fan monitoring
Manual and automatic fan control
Voltage monitoring

Form Factor
ATX
30.5 cm x 24.4 cm

Operating System Support
Windows 10 (64-bit)
Windows 11 (64-bit)

Additional Features
BIO-FLASHER
A.I FAN
PCIe slot detection during BIOS boot
PCIe M.2 32 Gb/s
