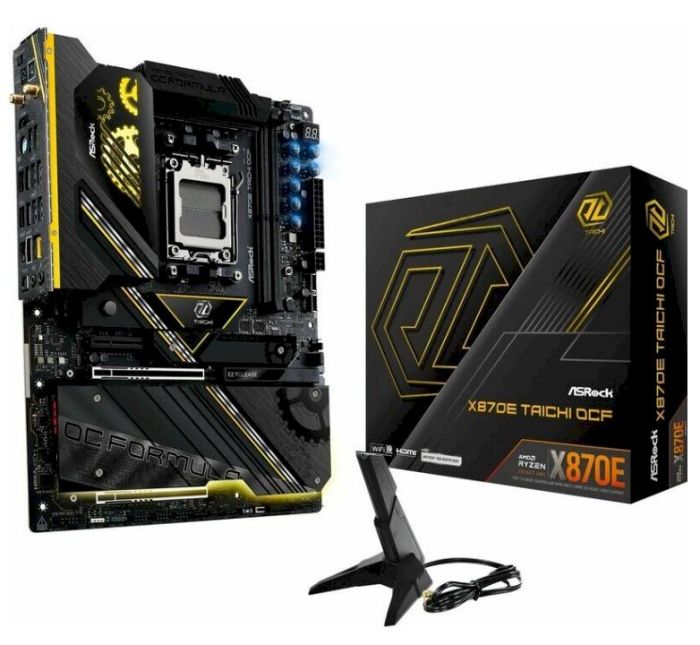

Asrock X870E TAICHI OCF Motherboard ATX (90-MXBTG0-A0UAYZ)

The ASRock X870E Taichi OCF is a high-end ATX motherboard designed for enthusiasts, overclockers, and high-performance gaming and creator systems. Built on the AMD X870E chipset and supporting AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, this board delivers robust power delivery, advanced DDR5 memory support, comprehensive storage options, and abundant modern connectivity, including USB4 and Wi-Fi 7.

Specifications:

• Form Factor: ATX (30.5 × 24.4 cm)

• Chipset: AMD X870E

• CPU Socket: AM5

• CPU Support: AMD Ryzen 7000 / 8000 / 9000 series

• Power Design: 25-phase robust VRM

• Memory: DDR5 up to 128 GB, XMP/EXPO support (2 slots)

• Expansion Slots: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x4

• Storage: Up to 6× M.2 (PCIe 5.0 / PCIe 4.0), 2× SATA 6 Gb/s

• USB: Multiple USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB2.0

• Video Outputs: HDMI 2.1, Display support via USB4

• Audio: 5.1-channel HD audio with enhanced DAC

• Networking_ 5 GbE LAN + Wi-Fi 7 + Bluetooth 5.4

• Cooling & Extras: Heatsinks on VRM and SSD slots, onboard buttons and debug features
