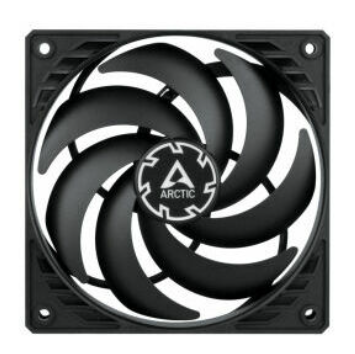

Arctic P12 Slim PWM PST Case Fan 120mm (ACFAN00187A)

Pressure-optimized 120 mm PWM fan with integrated Y-cable.
Ideal where space is limited
Optimized for static pressure
More efficient technology
Maximum quietness, minimum vibration
Extended lifespan
300 to 2100 rpm regulated via PWM PST
High-quality bearing
Ideal where space is limited
The P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.
Optimized for static pressure
During the development of the P12 Slim PWM PST, special emphasis was placed on a focused air stream and thus a high static pressure. The fan ensures extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
More efficient technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring, which allows the P12 Slim PWM PST to run much more efficiently. This saves energy and lowers the coil temperature without compromising the performance.
Maximum quietness, minimum vibration
Even at low speeds the operating sound of the ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.
Extended lifespan
A 10°C lower motor temperature roughly doubles the lifespan of a fan. The ARCTIC motor has a longer service life through its low coil temperature.
300 to 2100 rpm regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while ensuring maximum cooling performance when needed.
High-quality bearing
Thanks to an alloy / lubricant combination, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Pressure-optimized 120 mm PWM fan with integrated Y-cable.
