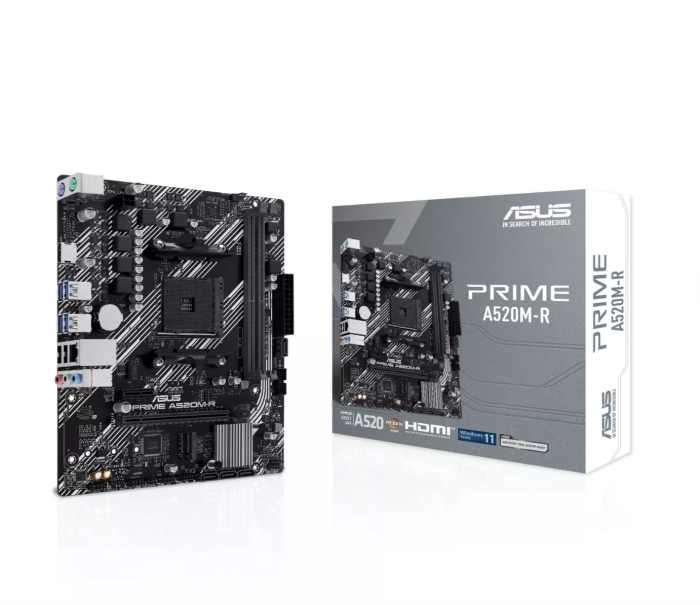

Asus PRIME A520M-R Motherboard (PRIMEA520M-R)

The ASUS PRIME A520 motherboard provides a reliable platform for AMD Ryzen processors with AM4 socket. It offers flexible memory configurations, comprehensive cooling control, USB and M.2 connectivity, and advanced security and networking features. Suitable for everyday use and DIY PC builders.

Key specifications:

• Form factor: Micro ATX

• Chipset: AMD A520

• CPU socket: AM4

• Memory: 2 × DDR5 DIMM, up to 64 GB, dual-channel

• PCIe slots: 1 × PCIe x16 Gen3, 1 × PCIe x1 Gen3

• M.2 slot: 1 × x4 PCIe 3.0 (up to 32 Gbps)

• SATA III ports: 4

• RAID support: 0, 1, 10

• Ethernet: Realtek 1Gb LAN with LANGuard

• Audio: 7.1 channels with dedicated PCB layers and high-quality capacitors

• I/O ports: USB 3.2 Gen1 Type-A (4), USB 3.2 Gen1 Type-C (1), USB 2.0 (2), HDMI 2.1 (1), PS/2 (2), audio jack

Cooling & protection:

• Fan Xpert software and UEFI BIOS fan control

• 4-Pin PWM/DC fan connectors

• Integrated overheat and overcurrent protection

Additional features: SafeSlot Core, Q-LED Core, Armoury Crate RGB control, stainless steel rear I/O panels
