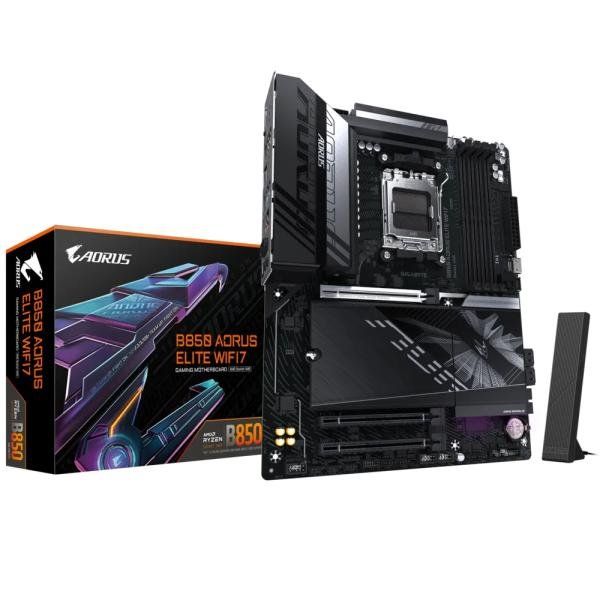

Gigabyte B850 A Elite WF7 Motherboard AMD AM5 / B850 / DDR5 4×DIMM / ATX / Wi-Fi 7 / 2.5 GbE (B850AELITEWF7)

The Gigabyte B850 A Elite WF7 motherboard is built for AMD Ryzen processors using the AM5 socket and features the new B850 chipset. It supports high-speed DDR5 memory, reinforced PCIe slots, PCIe 5.0 M.2 storage and modern connectivity including 2.5 GbE and Wi-Fi 7. Large VRM heatsinks ensure stable operation under heavy workloads. The ATX form factor provides extensive expandability for gaming and workstation builds.

Specifications
Model: Gigabyte B850 A Elite WF7
Device type: Motherboard
CPU socket: AMD AM5
Chipset: AMD B850
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Channel: Dual Channel
Max capacity: 192 GB
Supported speeds: up to 8200 MT/s (OC)
Profiles: AMD EXPO / XMP

Expansion
1× PCIe 5.0 x16
1× PCIe 4.0 x16 (x4 electrical)
1× PCIe 3.0 x1

Storage
3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)
4× SATA 6 Gb/s
RAID 0 / 1 / 10

Networking & wireless
LAN: 2.5 GbE
Wi-Fi_ Wi-Fi 7
Bluetooth: supported

Audio
HD Audio
Standard 3.5 mm jacks

Rear I/O
USB Type-C
USB 3.2 Gen2
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45
Audio jacks

Cooling & design
Large VRM heatsinks
M.2 heatsinks
Fan headers: CPU_FAN, PUMP, SYS_FAN
Reinforced PCIe slots

Other features
BIOS update without CPU
TPM support
Windows 11 support

Board dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.20 kg
Gross weight: 2.05 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
