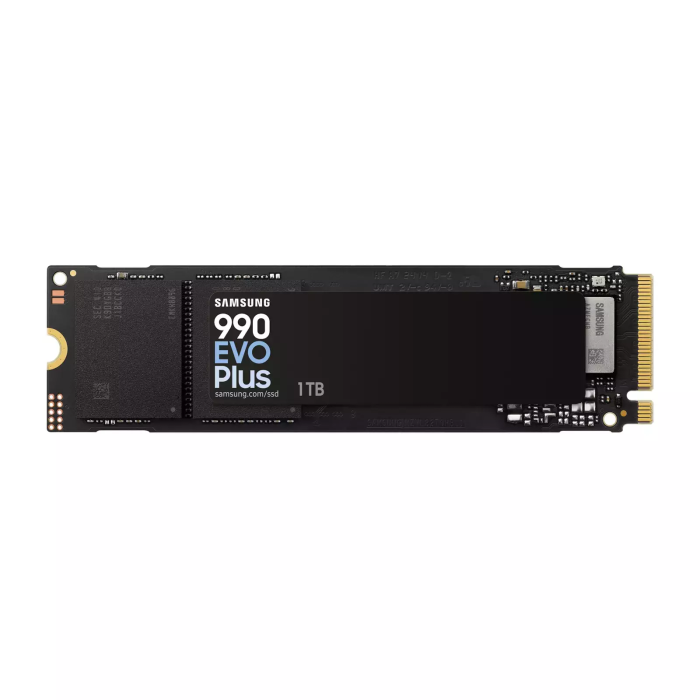

Samsung MZ-V9S1T0BW SSD 1TB M.2 2280 / NVMe (MZV9S1T0BW)

The M.2 2280 NVMe SSD is intended for desktops and laptops requiring high-speed performance. It uses V-NAND TLC memory and an in-house controller, providing high read/write speeds, stability under load and efficient power usage.

Characteristics
Form factor: M.2 2280
Interface: PCIe 4.0 x4, compatible with PCIe 5.0 x2
Protocol: NVMe 2.0
Capacity: 1 TB
Sequential read: up to 7150 MB/s
Sequential write: up to 6300 MB/s
Random read (4K): up to 850000 IOPS
Random write (4K): up to 1350000 IOPS
Memory type: V-NAND TLC
Controller: Samsung in-house
HMB support: yes
TBW: 600 TB
MTBF: 1500000 h
Data protection: AES-256, TCG Opal 2.0
Operating temperature: 0…70 °C
Storage temperature: –40…85 °C
Shock resistance: 1500 G
Vibration resistance: 20 G
Dimensions: 80.15 × 22.15 × 2.38 mm

Physical parameters
Weight: 0.009 kg
Gross weight: 0.050 kg
Package dimensions
Length, m: 0.08015
Height, m: 0.00238
Width, m: 0.02215
