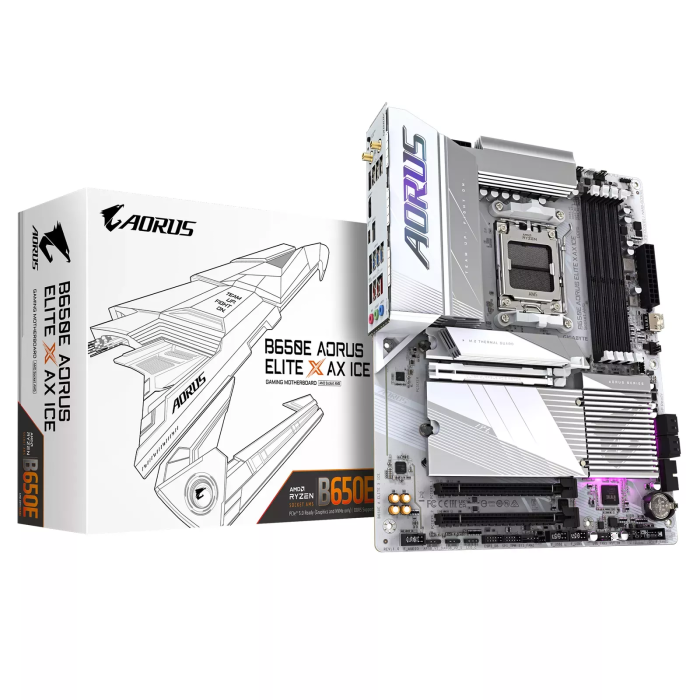

Gigabyte B650E A Elite X ICE 1.2 Motherboard AMD AM5 / B650E / DDR5 / 4×DIMM / ATX (B650EAELITEXICE)

The Gigabyte B650E A Elite X ICE 1.2 motherboard is designed for AMD Ryzen processors using the AM5 socket and built on the B650E chipset supporting PCIe 5.0. It includes four DDR5 slots, multiple high-speed M.2 connectors, reinforced PCIe slots and a strong VRM system with extended heatsinks. The ATX form factor provides wide expandability for gaming and workstation builds.

Specifications
Model: Gigabyte B650E A Elite X ICE 1.2
Device type: Motherboard
CPU socket: AMD AM5
Chipset: AMD B650E
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Mode: Dual Channel
Max capacity: 192 GB
Profiles: AMD EXPO / XMP
Speeds: high DDR5 OC frequencies

Power
VRM: multi-phase design
Cooling_ large VRM heatsinks with thermal pads
CPU power: 8-pin + 8-pin
Main power: 24-pin ATX

Expansion
1× PCIe 5.0 x16 (reinforced)
1× PCIe 4.0 x16 (x4 electrical)
1× PCIe 3.0 x1

Storage
3× M.2
— 1× PCIe 5.0 x4 (2280)
— 2× PCIe 4.0 x4 (2280)
4× SATA 6 Gb/s
RAID 0 / 1 / 10

Wireless
Wi-Fi 6 / 6E
Bluetooth supported

Networking & audio
LAN: 2.5 GbE
Audio: HD Audio

Rear I/O
USB 3.2 Gen2 Type-C
USB 3.2 Gen2
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45
Audio jacks

On-board headers
ARGB/RGB headers
CPU_FAN, PUMP, SYS_FAN
Front USB headers

Other features
BIOS update without CPU
Reinforced PCIe slots
TPM support
Windows 11 support

Board dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.20 kg
Gross weight: 2.00 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
