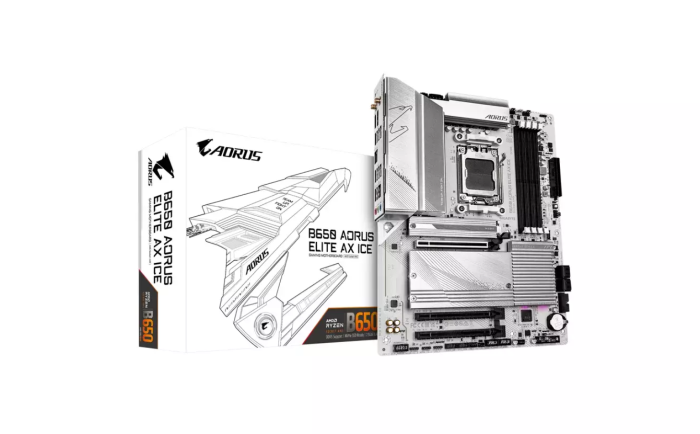

Gigabyte B650 A Elite AX ICE 1.1 Motherboard AMD AM5 / B650 / DDR5 / 4×DIMM / ATX (B650AELITEAXICE)

The Gigabyte B650 A Elite AX ICE 1.1 motherboard is designed for AMD Ryzen processors using the AM5 socket and built on the B650 chipset. It features a robust power delivery system, four DDR5 slots, high-speed PCIe 4.0 M.2 storage, wireless connectivity (Wi-Fi + Bluetooth), and reinforced PCIe slots. The ATX form factor offers extensive expandability for gaming and professional systems.

Specifications
Model: Gigabyte B650 A Elite AX ICE 1.1
Device type: Motherboard
CPU socket: AMD AM5
Chipset: AMD B650
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Mode: Dual Channel
Max capacity: 192 GB
Profile support: AMD EXPO / XMP
Supported speeds: high DDR5 OC frequencies

Power
VRM: multi-phase design
VRM cooling_ large heatsinks, thermal pads
Power connectors: 8-pin + 8-pin CPU, 24-pin ATX

Expansion
1× PCIe 4.0 x16 (reinforced)
1× PCIe 3.0 x16 (x4 electrical)
1× PCIe 3.0 x1

Storage
3× M.2 PCIe 4.0 x4 (2280)
4× SATA 6 Gb/s
RAID: 0 / 1 / 10

Wireless
Wi-Fi 6 or newer
Bluetooth supported

Networking & audio
LAN: 2.5 GbE
Audio: HD Audio
Audio ports: standard 3.5 mm

Rear I/O
USB 3.2 Gen2 Type-C
USB 3.2 Gen2
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45 LAN
Audio jacks

On-board connectors
ARGB/RGB headers
Fan headers: CPU_FAN, PUMP, SYS_FAN
USB headers for front panel

Other features
PCIe slot reinforcement
BIOS update without CPU
Windows 11 support
TPM support

Board dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.20 kg
Gross weight: 2.00 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
