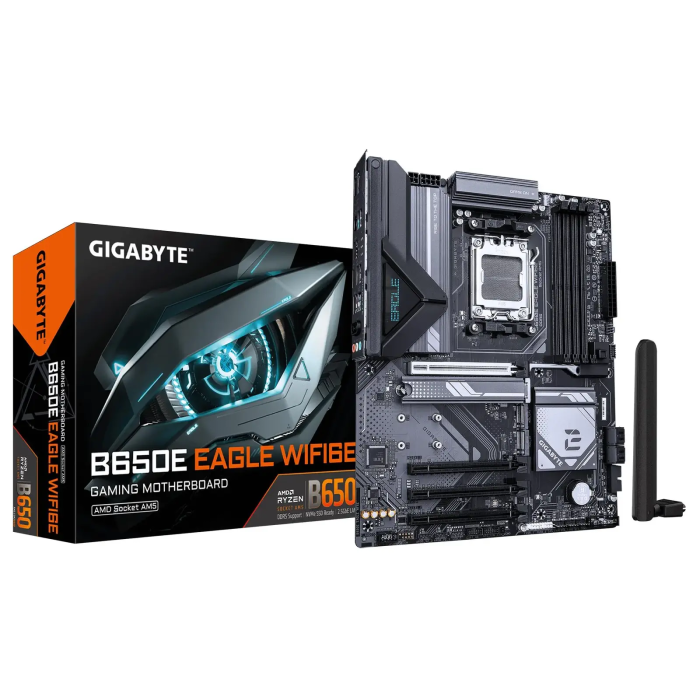

Gigabyte B650E Eagle WF6E 1.0 Motherboard AMD AM5 / B650E / DDR5 / 4×DIMM / ATX (B650EEAGLEWF6E)

The Gigabyte B650E Eagle WF6E 1.0 motherboard is designed for AMD Ryzen processors using the AM5 socket and the B650E chipset. It supports PCIe 5.0, four DDR5 memory slots, multiple high-speed M.2 NVMe connectors, and a robust VRM cooling solution. The ATX format enables extensive expandability for gaming or professional systems.

Specifications
Model: Gigabyte B650E Eagle WF6E 1.0
Device type: Motherboard
CPU socket: AMD AM5
Chipset: AMD B650E
Form factor: ATX

Memory
Type: DDR5
Slots: 4× DIMM
Channel mode: Dual Channel
Max capacity: 192 GB
Profile support: AMD EXPO / XMP
Supported speeds: high DDR5 OC speeds (module-dependent)

Expansion
1× PCIe 5.0 x16 (reinforced primary slot)
1× PCIe 4.0 x16 (x4 electrical)
1× PCIe 3.0 x1

Storage
3× M.2:
– 1× PCIe 5.0 x4 (2280)
– 2× PCIe 4.0 x4 (2280)
4× SATA 6 Gb/s
RAID support: 0 / 1 / 10

Rear I/O
USB 3.2 Gen2 Type-C
USB 3.2 Gen1
USB 2.0
HDMI
RJ-45 LAN
Audio jacks

Networking & audio
LAN: 2.5 GbE Ethernet
Audio: HD Audio
Audio jacks: standard 3.5 mm

Cooling
Enhanced VRM heatsinks
M.2 thermal plates
Fan headers: CPU_FAN, PUMP, SYS_FAN

Other features
RGB/ARGB headers
Reinforced PCIe and power connectors
Diagnostic LEDs
BIOS update without CPU
Windows 11 ready

Board dimensions: 30.5 cm × 24.4 cm

Physical parameters
Weight: 1.10 kg
Gross weight: 1.95 kg
Package dimensions
Length, m: 0.3300
Height, m: 0.2800
Width, m: 0.0700
