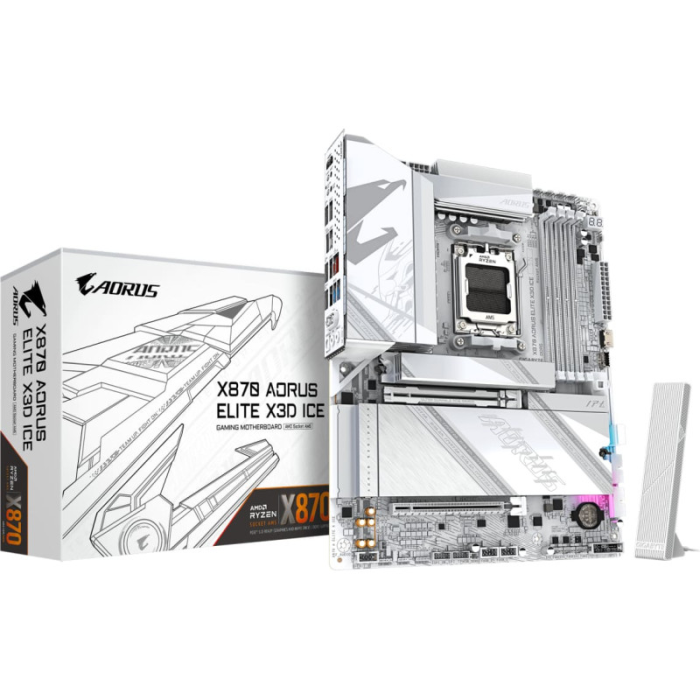

Gigabyte X870 Aorus Elite X3D IC E Motherboard AMD AM5 / DDR5 / ATX (X870AELITEXICE)

The Gigabyte X870 Aorus Elite X3D IC E motherboard is designed for AMD AM5 processors and based on the X870 chipset. It supports DDR5 memory, multiple M.2 PCIe slots, an enhanced power delivery system and advanced cooling elements. The model provides extensive connectivity, reinforced PCIe interfaces and convenient mounting features, making it suitable for high-performance PC builds with upgrade potential.

Specifications
Model: Gigabyte X870 Aorus Elite X3D IC E
Device type: Motherboard
Socket: AMD AM5
Chipset: AMD X870
Form factor: ATX
CPU support: AMD Ryzen for AM5
Memory: 4× DIMM DDR5, Dual Channel
Memory profiles: AMD EXPO
Memory speed: up to 8000+ MT/s (OC)
Power design: 16+2+2 phase VRM
Power connectors: 8-pin + 8-pin CPU, 24-pin ATX
M.2 slots: 4× M.2 (2× PCIe 5.0, 2× PCIe 4.0), with heatsinks
PCIe slots: 1× PCIe 5.0 x16 (reinforced), 1× PCIe 4.0 x4
Networking_ 5 GbE LAN
Wireless_ Wi-Fi 7, Bluetooth
Audio: 8-channel HD Audio
Rear I/O: USB4 Type-C, USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0, HDMI, LAN, audio jacks
Front I/O support: USB-C, USB-A, ARGB/RGB headers
Lighting_ RGB Fusion (ARGB and RGB headers)
Cooling elements: large VRM heatsinks, heatpipe, thermal pads, M.2 Thermal Guard
Additional features: Q-Flash Plus, Clear CMOS, EZ-Latch for PCIe & M.2, reinforced power connectors

Physical parameters
Weight: 2.0 kg
Gross weight: 2.5 kg
Package dimensions
Length, m: 0.40
Height, m: 0.30
Width, m: 0.10
