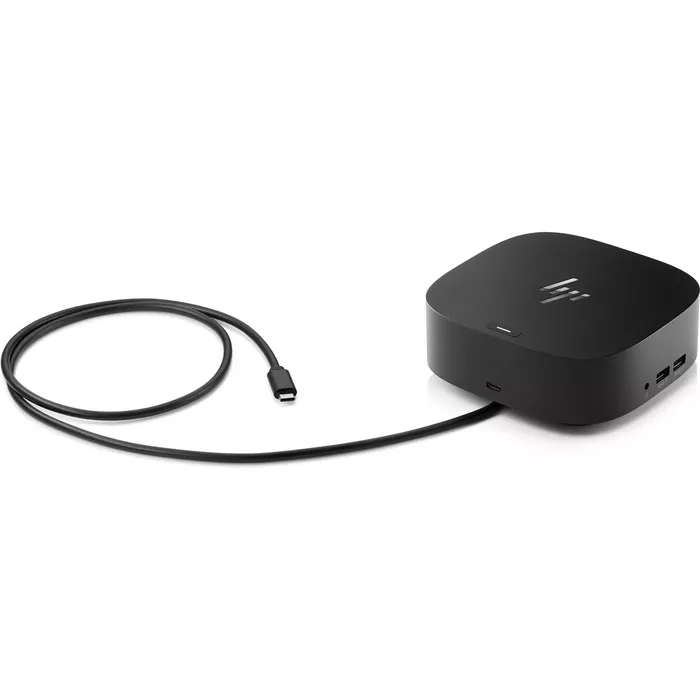

HP USB-C Docking Station G5 Essential 100W (Refurbished) (5TW10ET#ABB(REF))

HP USB-C Dock G5 (5TW10ET#ABB) is a universal docking station for modern laptops. A single USB-C cable connects your notebook to two external displays, peripherals, and wired networking while delivering power. Its compact 5×5-inch footprint saves desk space, and enterprise management features simplify IT deployment.

Key Features

• Broad compatibility: works with HP and non-HP laptops with USB-C/Thunderbolt and DisplayPort Alt Mode support.

• One-cable connectivity: access accessories, displays, network, and charging over a single USB-C connection.

• IT management: PXE Boot, LAN/WLAN switching, Wake-on-LAN, MAC Address Pass-Through (some features on supported HP notebooks only).

• Compact design: about 122 × 122 mm (5×5").

Ports & Interfaces

• Front: 1× USB-C (data + up to 15 W power), integrated USB-C host cable (~1 m).

• Sides: 2× USB-A (charging), 1× combo audio jack (3.5 mm).

• Rear: 2× USB-A (charging), 2× DisplayPort™, 1× HDMI 2.0, 1× RJ-45 (Gigabit), Kensington security slot.

Display Connectivity

• Up to 3 total displays (including the laptop screen): two external monitors + host display.

Power

• Power to host (USB-C PD): up to 100 W.

• PD profiles: 5V/9V/10V/12V/15V/20V — up to 5 A (max).

Compatibility

• OS: Windows 10/7, macOS (certain management/eTag features may require Windows 10).

• Host requirements: USB-C port with DisplayPort Alt Mode and USB Power Delivery.

IT Management & Security

• Wake-on-LAN (warm/cold dock, S4/S5), MAC Address Pass-Through (S0/S3/S4/S5), remote dock firmware updates, and eTag asset tracking. (Some features available only on supported HP notebooks.)

Physical

• Dimensions (W × D × H): 122 × 122 × 45 mm

• Weight: ~0.68 kg

• Controls: power button/LED (to power on/wake supported hosts).

Box Contents

• HP USB-C Dock G5

• AC power adapter (model/wattage varies by region)

• Power cord, documentation

  Note: The actual number/resolution of supported displays and PD profiles depends on your laptop’s specifications (GPU/CPU/OS, DP Alt Mode and PD support).
