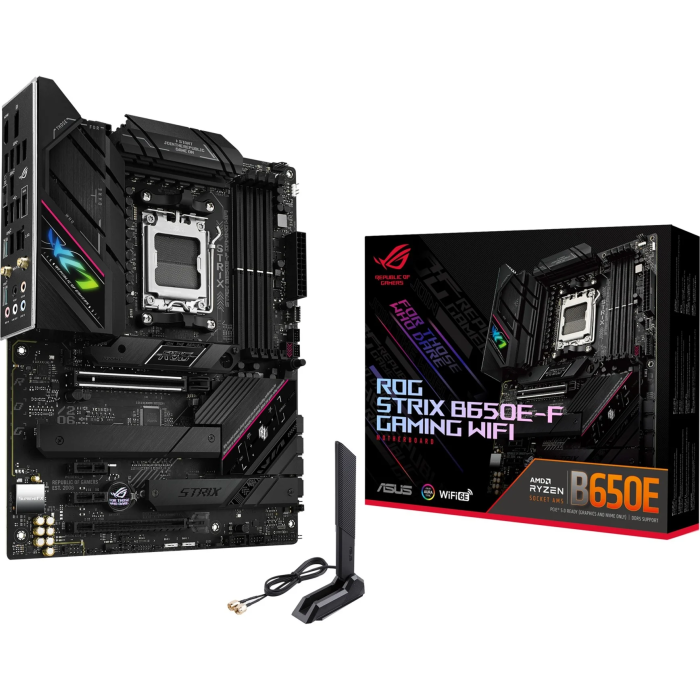

Asus ROG Strix B650E-F Gaming WiFi Motherboard AMD B650 / Socket AM5 / ATX (90MB1BQ0-M0EAY0)

The Asus ROG Strix B650E-F Gaming WiFi motherboard is built for gaming and high-performance systems powered by AMD Ryzen 7000 Series processors. It combines premium components, robust power delivery, PCIe 5.0, and WiFi 6E support. With advanced cooling and DDR5 compatibility, it delivers stability even under heavy workloads.

Specifications:
Model: ROG Strix B650E-F Gaming WiFi
Type: Motherboard
Chipset: AMD B650E
Socket: AM5
Supported CPUs: AMD Ryzen 7000 Series (Raphael)
Form factor: ATX (30.5 × 24.4 cm)
Memory: DDR5, 4 × DIMM, up to 128 GB, up to 6400 MHz (OC), Dual Channel, EXPO support
ECC support: No

Expansion slots:
– 1 × PCIe 5.0 x16 (SafeSlot)
– 1 × PCIe 4.0 x16 (x4 mode)
– 1 × PCIe 3.0 x1

Graphics support:
– AMD CrossFireX
– Compatible with Radeon and GeForce GPUs

Storage:
– 2 × M.2 PCIe 5.0 x4 (NVMe, 2280)
– 1 × M.2 PCIe 4.0 x4 (NVMe, 2280)
– 4 × SATA 6 Gb/s
RAID support: RAID 0, 1, 10

Network:
– Intel WiFi 6E (802.11 a/b/g/n/ac/ax, 2.4/5/6 GHz)
– Bluetooth 5.3
– Realtek 2.5G LAN (RTL8125B)

Audio:
– ROG SupremeFX 7.1 HD Audio (ALC4080)
– Up to 32-bit / 384 kHz
– Gold-plated jacks
– Optical S/PDIF output

Rear I/O:
– 1 × HDMI 2.1
– 1 × DisplayPort 1.4
– 1 × USB 3.2 Gen 2x2 Type-C
– 3 × USB 3.2 Gen 2 Type-A
– 4 × USB 2.0 Type-A
– 1 × RJ-45 2.5G LAN
– 5 × Audio jacks
– 1 × Optical S/PDIF
– 2 × WiFi antenna connectors

Internal connectors:
– 1 × USB 3.2 Gen 2 Type-C
– 1 × USB 3.2 Gen 1 Header
– 2 × USB 2.0 Header
– 1 × 24-pin ATX Power
– 1 × 8-pin CPU Power + 1 × 4-pin CPU Power
– 1 × RGB Header
– 3 × Addressable Gen2 RGB Headers
– 1 × Front Audio Header
– 1 × TPM
– 1 × COM

Cooling system:
– VRM, chipset, and M.2 heatsinks
– Water cooling support (AIO Pump Header)
– 6 × PWM/DC fan headers

Power delivery:
– 12 + 2 phase design
– DIGI+ VRM Controller
– Premium capacitors
– ProCool II connectors

Technologies:
– ASUS Aura Sync RGB
– Q-Latch for tool-free M.2 installation
– Q-Release for GPU removal
– BIOS FlashBack / Clear CMOS
– Armoury Crate / AI Cooling / Fan Xpert 4
– EPU / TPU / AI Networking

BIOS: 256 Mbit UEFI AMI BIOS
OS compatibility: Windows 11 / 10 (64-bit)
Model year: 2024
Purpose: Gaming and professional PCs
Package contents: Motherboard, WiFi antennas, SATA cables, M.2 screws, user manual

Physical parameters:
Weight: 1.10 kg
Gross weight: 1.85 kg
Package dimensions
Length, m: 0.34
Height, m: 0.28
Width, m: 0.08
