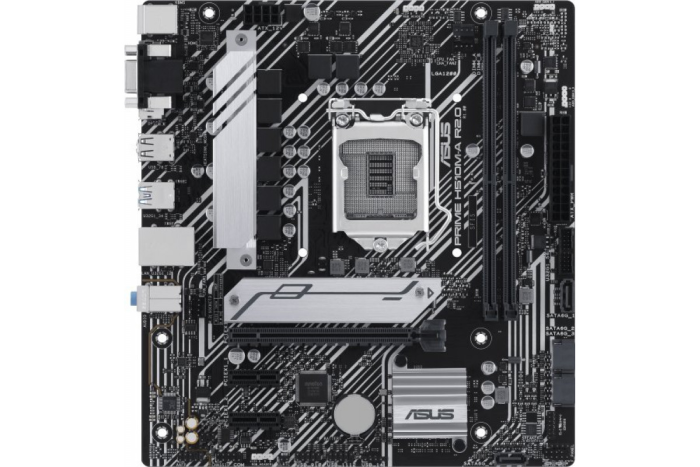

Asus Prime H510M-A R2.0 Motherboard Intel H510 / LGA 1200 / Micro-ATX (90MB1FP0-M0EAY0)

The Asus Prime H510M-A R2.0 motherboard is designed for Intel Core 10th and 11th Gen processors. It offers a compact Micro-ATX design, support for DDR4 memory, M.2 storage, and advanced power management with DIGI+ VRM and ASUS 5X Protection III. Ideal for home, office, and educational PC builds.

Specifications:
Model: Prime H510M-A R2.0
Type: Motherboard
Chipset: Intel H510
Socket: LGA 1200
Supported CPUs: Intel Core 10th and 11th Gen, Pentium Gold, Celeron
Form factor: Micro-ATX (24.4 × 22.9 cm)
Memory: DDR4, 2 × DIMM, up to 64 GB, up to 3200 MHz (11th Gen) / 2933 MHz (10th Gen), dual-channel, XMP support
Graphics interface: Depends on CPU
Video outputs: HDMI 1.4, DisplayPort 1.4, VGA (D-Sub)
Resolution support: Up to 4096 × 2160 @ 30 Hz
Expansion slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
Storage: 1 × M.2 (PCIe 3.0 x4 / SATA), 4 × SATA 6 Gb/s
RAID support: RAID 0, 1, 5, 10
LAN: Realtek RTL8111H 1 Gb Ethernet
Audio: Realtek ALC887 7.1 Channel HD Audio (24-bit / 192 kHz)
USB (rear): 2 × USB 3.2 Gen 1, 4 × USB 2.0
USB (internal): 1 × USB 3.2 Gen 1 Header, 2 × USB 2.0 Header
Rear I/O: HDMI, DisplayPort, VGA, RJ-45, 3 × Audio jacks, PS/2
Internal connectors: 24-pin ATX, 8-pin CPU, RGB Header, Addressable RGB Header, TPM, COM, Front Audio
Fan support: 1 × CPU Fan, 1 × Chassis Fan
Technologies: ASUS OptiMem, DIGI+ VRM, ASUS Aura Sync, Fan Xpert, Q-Fan Control, CrashFree BIOS 3, EZ Flash 3
Protection: ASUS 5X Protection III (SafeSlot Core, Overvoltage Protection, LANGuard, Stainless Steel Back I/O)
BIOS: UEFI AMI (128 Mbit Flash)
OS compatibility: Windows 11 / 10 (64-bit)
Model year: 2024
Purpose: Home, office, and educational PCs
Package contents: Motherboard, SATA cables, I/O shield, mounting kit, user manual

Physical parameters:
Weight: 0.65 kg
Gross weight: 1.00 kg
Package dimensions
Length, m: 0.33
Height, m: 0.27
Width, m: 0.07
