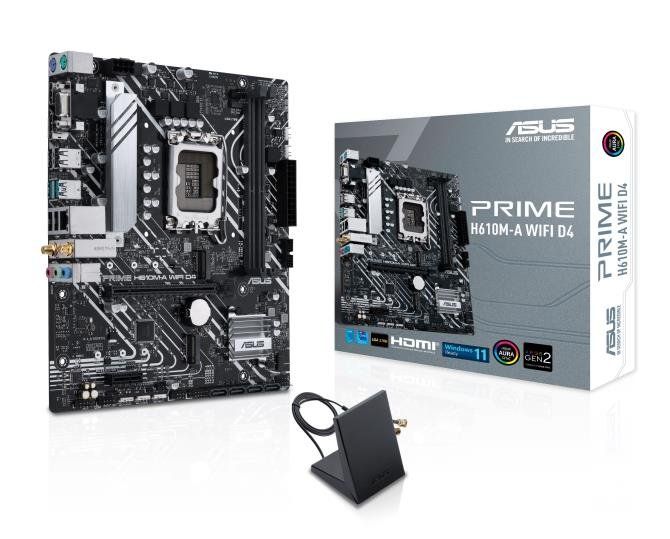

Asus PRIME H610M-A Motherboard WIFI / D4 / Intel / H610 / LGA / 1700 micro / ATX (PRIMEH610M-AWIFID4)

Processor:

• CPU socket: LGA 1700

• Supported processors: Intel Celeron, Pentium, Core i3/i5/i7/i9

• Maximum number of CPUs: 1

Memory:

• Memory slots: 2

• Maximum capacity: 64 GB

• Supported types: DDR4-SDRAM

• Supported clock speeds: 2133–3200 MHz

• Channels: Dual channel

• Unbuffered memory: Yes

• ECC support: non-ECC

Expansion Slots:

• PCIe X1 (Gen 3.x): 1

• PCIe x16 (Gen 4.x): 1

• M.2 slots: 2

Graphics:

• Supported displays: 3

Networking_

• Ethernet LAN: Gigabit Ethernet

• Wi-Fi_ Wi-Fi 4/5

• Bluetooth: 5.0

Internal I/O:

• USB 2.0: 2

• USB 3.2 Gen 1 (Type-A): 1

• SATA III: 4

• ATX Power, EPS (8-pin), 12V connectors: Yes

• CPU fan connector: Yes

• COM ports: 1

• TPM connector: Yes

• RGB LED connector: Yes

Rear I/O Ports:

• PS/2: 2

• USB 2.0: 4

• USB 3.2 Gen 1 (Type-A): 2

• Ethernet LAN (RJ-45): 1

• HDMI 2.1: 1

• DisplayPort 1.4: 1

• VGA: 1

• Headphone output: 1

• Microphone/Line-out: Yes

Storage:

• Supported drives: HDD & SSD

• Interfaces: SATA, M.2

BIOS:

• Type: UEFI AMI

• Memory size: 128 Mbit

Additional:

• Supported Windows: 10 x64, 11 x64

• Drivers included: Yes

• SATA cables included in package
