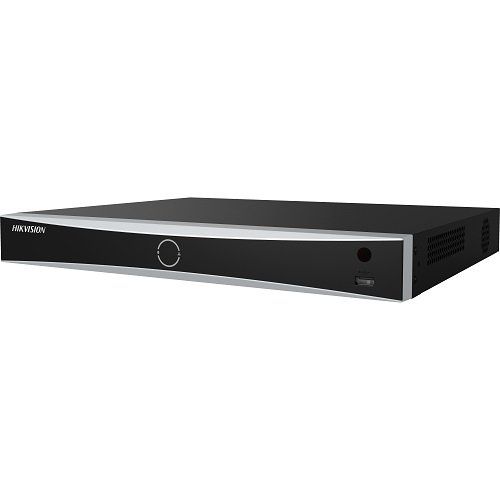

Hikvision DS-7616NXI-I2/S(E) Network video recorder (DS-7616NXI-I2/S(STD)(E))

The Hikvision DS-7616NXI-I2/S(E) is a professional 16-channel NVR designed for advanced IP surveillance systems. Featuring Acusense technology, it enables precise human and vehicle classification, reducing false alarms and improving monitoring efficiency. The recorder supports up to 12 MP resolution per channel and dual HDMI/VGA output for flexible display options. With H.265+ video compression, it maximizes storage efficiency while maintaining excellent video quality. Ideal for both business and large-scale security applications.

Technical Specifications:

• Model: DS-7616NXI-I2/S(E)

• Video Input: 16 IP channels

• Maximum Resolution: Up to 12 MP

• Decoding Capability: Up to 2-ch @ 8 MP / 8-ch @ 1080p

• Video Output: HDMI × 2, VGA × 1 (up to 4K)

• Compression Format: H.265+/H.265/H.264+/H.264

• Storage: 2 × SATA interfaces (up to 10 TB each)

• Audio Input/Output: 1/1 (RCA)

• Network Interface: 1 × RJ-45 10/100/1000 Mbps

• USB Interface: 2 × USB 2.0, 1 × USB 3.0

• AI Functions: Acusense (human/vehicle recognition, motion detection)

• Power Supply: 12 V DC

• Power Consumption: ≤ 20 W (without HDD)

• Operating Temperature: -10°C to +55°C

• Dimensions: 380 × 315 × 52 mm

• Weight: ≈ 2.0 kg
