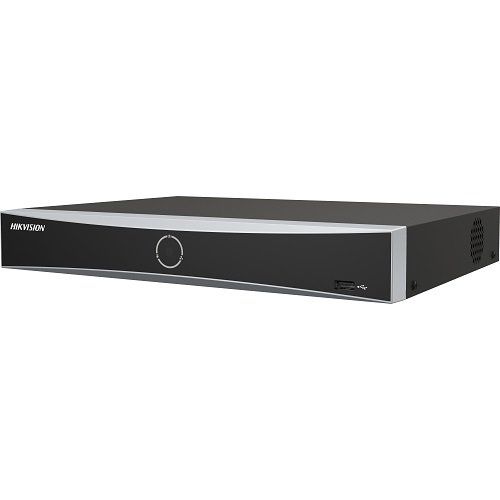

Hikvision DS-7616NXI-K1(D) Network video recorder (52612)

The Hikvision DS-7616NXI-K1(D) is a powerful 16-channel network video recorder (NVR) designed for professional IP surveillance systems. Supporting up to 12 MP resolution per channel, it provides high-quality video recording and efficient video analytics. Equipped with Acusense technology, it enhances motion detection accuracy by distinguishing between humans and vehicles. With H.265+ compression, it offers high storage efficiency and seamless remote access via Hik-Connect.

Technical Specifications:

• Model: DS-7616NXI-K1(D)

• Video Input: 16 IP channels

• Maximum Resolution: Up to 12 MP

• Decoding Capability: Up to 4-ch @ 1080p

• Video Output: HDMI, VGA (up to 4K)

• Compression Format: H.265+/H.265/H.264+/H.264

• SATA Interface: 1 × SATA (up to 10 TB)

• Network Interface: 1 × RJ-45 10/100/1000 Mbps

• USB Interface: 2 × USB 2.0

• Alarm I/O: 4/1 (optional)

• AI Functions: Acusense (human & vehicle classification)

• Power Supply: 12 V DC

• Power Consumption: ≤ 15 W (without HDD)

• Operating Temperature: -10°C to +55°C

• Dimensions: 315 × 242 × 45 mm

• Weight: ≈ 1.3 kg
