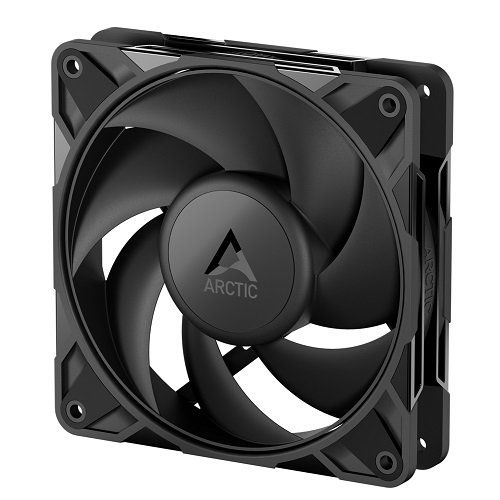

Arctic P12 Pro Case fan 120mm (ACFAN00306A)

The ARCTIC P12 PRO PWM PST High-Performance Fan is a 120mm PC case fan designed for superior cooling performance. Equipped with a 4-pin PWM connector and PWM Sharing Technology (PST), it allows multiple fans to be controlled via a single motherboard header for synchronized speed adjustment. Its hydrodynamic bearing ensures long-lasting, quiet operation. Ideal for radiators, heatsinks, and high-performance PC cases, it provides excellent airflow and static pressure.

Technical Specifications:

• Size: 120 × 120 × 25 mm

• Speed: 600–3000 RPM (PWM controlled)

• Airflow: 77 CFM (131 m³/h)

• Static Pressure: 6.9 mmH₂O

• Bearing Type: Hydrodynamic sleeve bearing

• Noise Level: ~25 dBA

• Voltage: 12V DC

• Power Consumption: 3.96 W

• Start-up Voltage: 3.3V DC

• Cable Length: 400 mm + 80 mm daisy-chain cable

• Connector: 4-pin fan connector + 4-pin fan socket

• Operating Temperature: 0–40 °C

• Weight: 185 g
