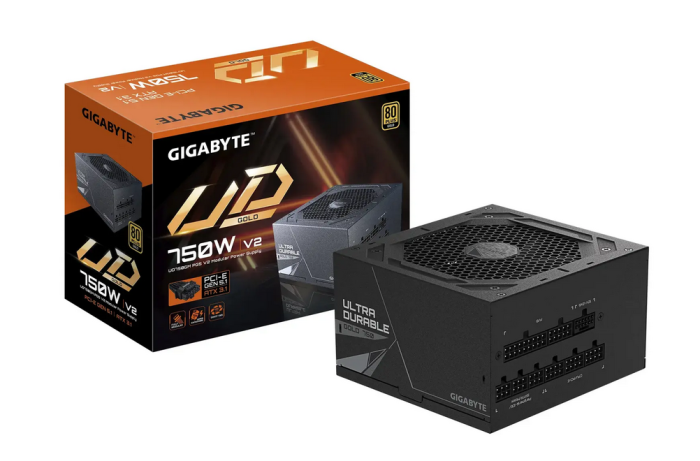

Gigabyte UD750GM PG5 V2 Power Supply 750W (GP-UD750GM PG5 V2)

Power Management
Total power: 750 W
Efficiency: 90 %
Power factor correction (PFC) type: Active
Hold-up time: 16 ms
Power protection description: Overcurrent, Overload, Overvoltage, Overheating, Short circuit, Under voltage
Power factor: 0.9
Total current (+3.3V): 105 W
Total current (+12V): 750 W
Total current (+5V): 105 W
Total current (-12V): 3.6 W
Total current (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Input current: 12 - 6.5
AC input frequency: 50/60
AC input voltage: 100 - 240

Connectivity
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
Floppy drive power connector: 1
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
CPU power connector (4+4 pin): Yes
PCI Express power connector (6+2 pin): 4
Cable type: Fully modular
Motherboard power cable length: 610 mm
SATA power cable length: 600, 150
CPU power cable length: 650 mm
Peripheral (Molex) power cable length: 150, 500
PCI Express power cable length: 600 mm
PCI Express power connectors (12+4 pins): 1
EPS connector count: 2

Performance
Intended use: PC
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Fan shaft type: HYB
ATX version: 3.1
PSU form factor: ATX

Design
Fan diameter: 120 mm
Number of fans: 1 fan(s)
Cooling type: Active
Integrated on/off switch: Yes
Product color: Black

Weight & Dimensions
Weight: 2.34 kg
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Package Information
Package weight: 2500 g
Package depth: 269 mm
Package height: 211 mm
Package width: 618 mm
Package type: Box
