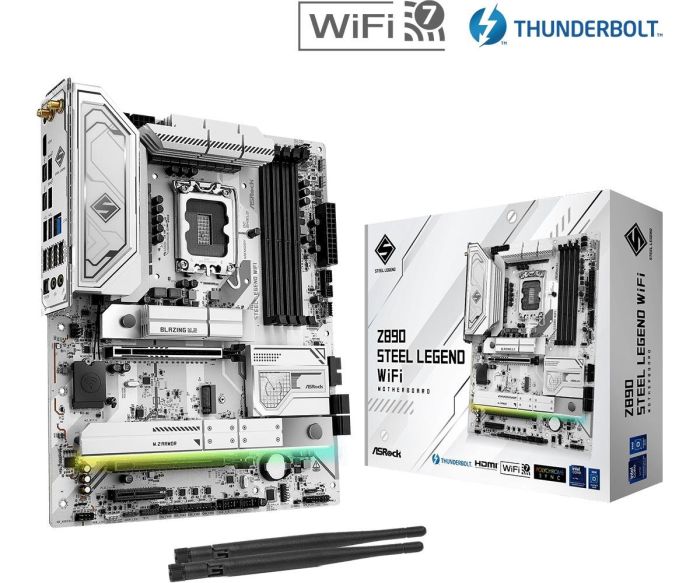

Asrock Z890 Steel Legend Motherbord ATX (Z890 STEEL LEGEND WIFI)

Features

• Motherboard form factor: ATX

• Motherboard chipset: Intel Z890

• Component: PC (computer)

• Audio output channels: 7.1

• Motherboard chipset family: Intel

• Product color: White

Processor

• Processor manufacturer: Intel

• Processor socket: LGA 1851 (Socket V1)

Memory

• Memory slots: 4

• Maximum internal memory: 256 GB

• Supported memory types: DDR5-SDRAM

• Memory slot type: DIMM

• Supported memory frequency (max.): 9466 MHz

• ECC compatibility: non-ECC

Expansion Slots

• PCI Express x16 (Gen 4.x) slots: 1

• PCI Express x4 (Gen 4.x) slots: 1

• PCI Express x16 (Gen 5.x) slots: 1

Networking

• Bluetooth version: 5.4

• Ethernet/LAN connection: Yes

• Bluetooth: Yes

• LAN controller: Dragon RTL8125BG

• Wi-Fi_ Yes

• Ethernet interface type: 2.5 Gigabit Ethernet

• Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

• USB 2.0 ports: 4

• CPU fan connector: Yes

• ATX Power connector: Yes

• Switch fan count: 5

• Front panel audio connector: Yes

• TPM connector: Yes

• EPS power connector (8-pin): Yes

• USB 3.2 Gen 1 (3.1 Gen 1) ports: 4

• SATA III ports: 4

• USB 3.2 Gen 2 (3.1 Gen 2) ports: 0

• RGB LED header: Yes

• USB 3.2 Gen 2x2 connectors: 1

• Processor fan connectors: 2

• EPS power connectors (8-pin): 2

Rear I/O Ports

• USB 2.0 ports: 4

• Ethernet LAN (RJ-45) ports: 1

• Microphone / line out: Yes

• S/PDIF out port: Yes

• VGA (D-Sub) ports: 0

• DVI-D ports: 0

• WiFi-AP antenna connector: 2

• HDMI ports: 1

• HDMI version: 2.1

• Thunderbolt ports quantity: 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4

• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 0

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 0

Storage Controllers

• RAID levels: 1, 5, 10

• RAID support: Yes

• Supported storage disk interfaces: M.2, SATA III

BIOS

• BIOS memory size: 256 Mbit

• BIOS type: UEFI AMI

Dimensions & Weight

• Width: 305 mm

• Depth: 244 mm

Additional Information

• Supported Wi-Fi standards: Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7, 802.11g, 802.11b, 802.11a

• Audio chip: Realtek ALC1220
