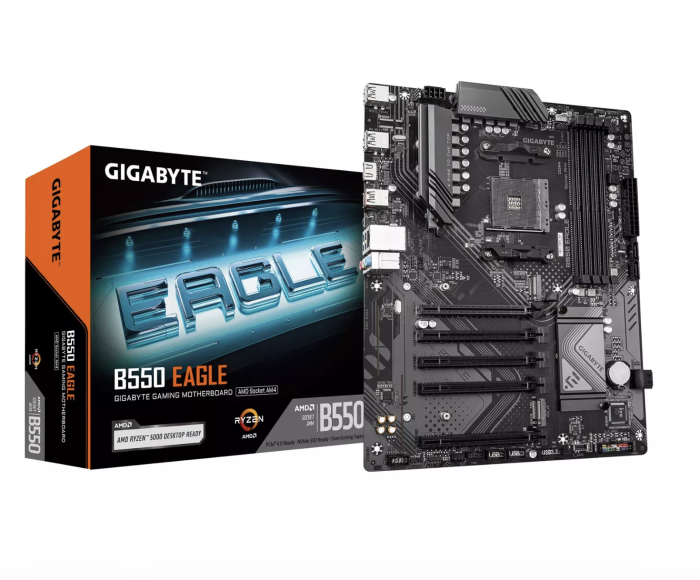

Gigabyte B550 EAGLE Motherboard AMD Ryzen 5000 G-Series CPUs / 10+3+1 Phases VRM / 3200MHz DDR4 / 1xPCIe 4.0 + 1xPCIe 3.0 M.2 / 1GbE LAN / USB 3.2 Gen 2 (B550 EAGLE)

Technical Specifications:

• CPU Socket: AMD AM4

• Supported Processors: AMD Ryzen 3000 / 4000 / 5000 series

• Chipset: AMD B550

• Power Delivery: 10+3 digital VRM design

• Memory: 4 × DDR4 DIMM (dual-channel)

• Max Memory Frequency (OC): up to 4733 MHz

• PCIe Slots:

  • 1 × PCIe 4.0 x16

  • 4 × PCIe 3.0 x1

• M.2 Slots: 2 × M.2 (1 × PCIe 4.0 x4, 1 × PCIe 3.0 x4)

• SATA Ports: 4 × SATA 6 Gb/s

• USB Ports: USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, USB 2.0

• Networking_ 1 × Gigabit LAN

• Audio: 8-channel HD audio with high-quality capacitors

• Additional Features: Q-Flash Plus (BIOS update without CPU), RGB/ARGB headers, VRM cooling solutions
