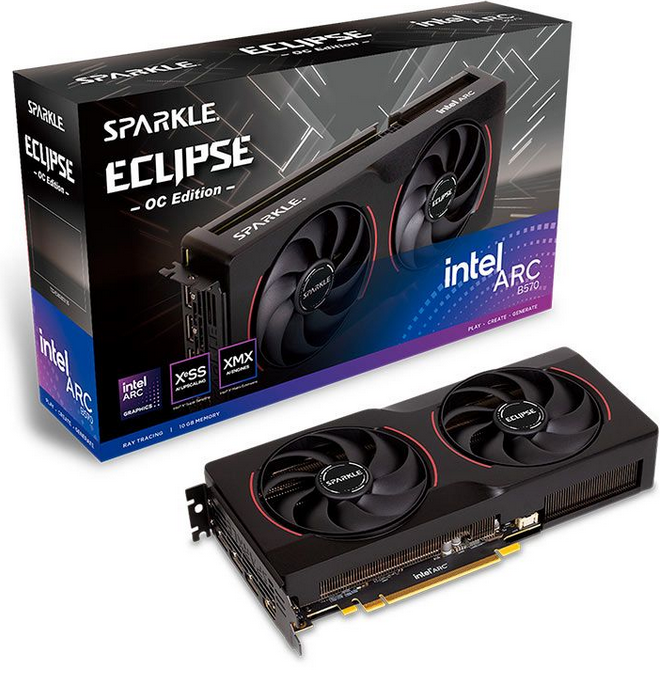

Sparkle Intel ARC B570 Eclipse OC Video Card 10GB (SB570GB-10GOC)

Intel® XMX Engines 144
GPU Peak Tops (Int8) 203
Memory Size 10GB GDDR6
Graphics Memory Interface 160-bit
Graphics Memory Bandwidth 380 GB/s
Max Resolution Up to 8K at 120Hz HDR with DSC
PCI Express Configurations PCI Express 4.0 x8
TBP 170 Watt
Lighting Blue Breathing Light
EAN 4711342291112

KEY FEATURES
TORN Cooling 2.0
Metal Backplate, Pre-Installed
Ray Tracing
Variable Rate Shading (VSR)
DirectX 12 Ultimate
Vulkan 1.3
OpenGL 4.6
OpenCL 3.0
Adaptive Sync
AV1 Encode / Decode
VP9 Bitstream & Decoding
Intel Deep Link Hyper Compute
Intel Deep Link Hyper Encode
Intel Deep Link Stream Assist

RESOLUTION & REFRESH
HDMI 2.1 (Max) 7680 x 4320 @120Hz
3x DisplayPort 2.1 (Max) 7680 x 4320 @60Hz

REQUIREMENTS
10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
PCI-Express® compliant MB with one x16 PCIe slot
600W or greater PSU with 1x 8-pin PCIe power connector
8GB of system memory minimum, 16GB recommended
Windows® 11 64-bit or Windows® 10 64-bit

DIMENSIONS
Dimension 242 x 105 x 44 mm
Weight 796 g
Width 2.2-Slot
