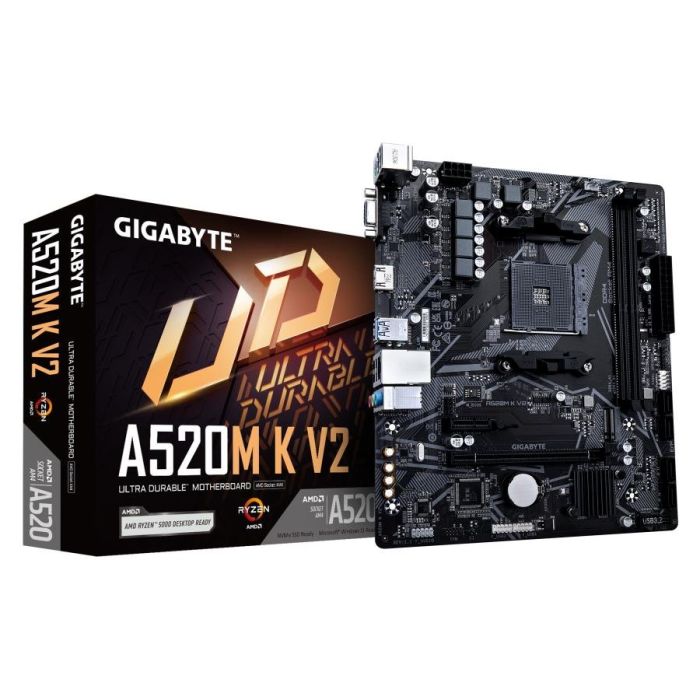

Gigabyte A520M K V2 Motherboard Micro ATX / AMD AM4 / A520 / DDR4 (A520M-K-V2)

• Motherboard form factor: Micro ATX

• Chipset: AMD A520

• Component: PC (Computer)

• Audio channels: 7.1

• PC Health Monitoring_ FAN, Temperature, Voltage

• Supported Windows OS: Windows 10 x64, Windows 11 x64

• Chipset family: AMD

Processor

• CPU manufacturer: AMD

• CPU socket: AM4

Memory

• Memory slots: 2

• Max. memory: 64 GB

• Supported memory types: DDR4-SDRAM

• Supported memory speeds: 2133 – 5100 MHz

• Memory channels: Dual

• Unbuffered memory: Yes

• Memory slot type: DIMM

• Max memory frequency: 5100 MHz

• ECC compatibility: ECC & non-ECC

Expansion slots

• PCI Express x16 slots: 1

• PCI Express x1 slots: 1

• M.2 (M) slots: 1

Graphics

• Max. resolution: 4096 x 2160

• Parallel processing support: Not supported

• HDCP: Yes

Networking

• Ethernet/LAN: Yes

• Wi-Fi_ No

• Ethernet interface: Gigabit Ethernet

Internal I/O

• USB 2.0: 2

• CPU fan connector: Yes

• ATX power connector: Yes

• Switch connector: Yes

• Front panel audio: Yes

• TPM connector: Yes

• EPS 8-pin: Yes

• USB 3.2 Gen 1 (3.1 Gen 1): 1

• SATA III: 4

• USB 3.2 Gen 2 (3.1 Gen 2): 0

• Front panel connector: Yes

• 12V power connector: Yes

Rear I/O

• PS/2 ports: 1

• USB Type-A: Yes

• USB 2.0 ports: 2

• Ethernet LAN (RJ-45): 1

• Headphone outputs: 3

• Mic/Line out: Yes

• VGA (D-Sub): 1

• DVI-D: 0

• HDMI: 1

• HDMI version: 2.1

• USB 3.2 Gen 1 Type-A: 4

• USB 3.2 Gen 1 Type-C: 0

• USB 3.2 Gen 2 Type-A: 0

• USB 3.2 Gen 2 Type-C: 0

Storage controllers

• RAID levels: 1, 10

• Supported disk types: HDD & SSD

• RAID support: Yes

• Supported storage drives: 5

• Supported interfaces: M.2, SATA III

Technical details

• Warranty: 3 years

BIOS

• BIOS memory: 128 Mbit

• BIOS type: UEFI AMI

• ACPI version: 5.0

• CMOS reset jumper: Yes

• DMI version: 2.7

• SMBIOS version: 2.7

Weight & dimensions

• Width: 233 mm

• Depth: 198 mm

• Height: 35 mm

• Package weight: 675 g

Package contents

• Included software: Norton Internet Security

• Cables included: SATA

• Battery included: Yes

Package information

• Package depth: 235 mm

• Package height: 52 mm

• Package width: 265 mm

Battery

• Battery technology: Lithium-Manganese Dioxide (LiMnO2)

• Battery type: CR2032

• Cells: 1

• Battery weight: 3 g

• Lithium weight per battery: 0.07 g

Logistics

• Country of origin: China

• Quantity per transport box_ 1 pc
