DeepCool CG580 WH Computer Case (R-CG580-WHNDA0-G-1)

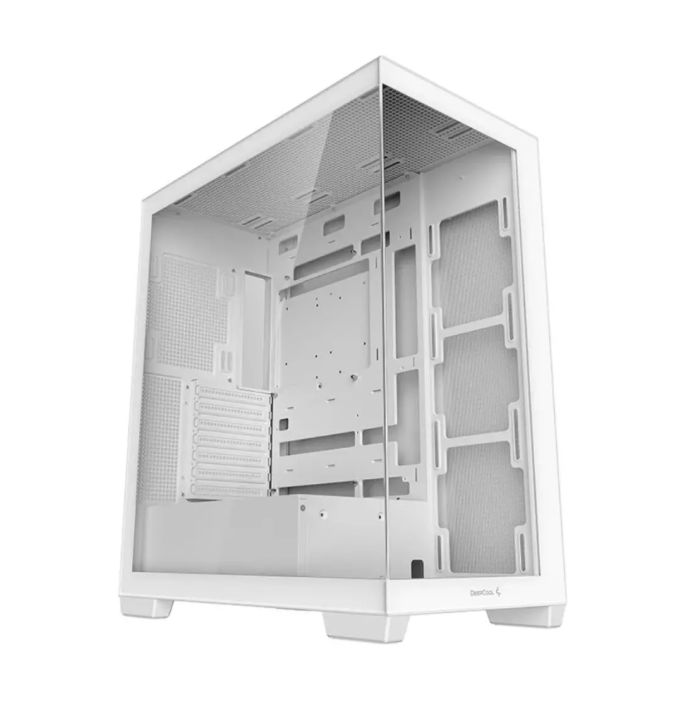

The DeepCool CG580 is a mid‑tower case with a panoramic tempered glass side panel. It offers flexible cooling support, accommodates modern components including radiators and long GPUs, and features a well‑ventilated single‑chamber layout.

Technical Specifications:

• Supported motherboard formats: ATX, Micro‑ATX, Mini‑ITX

• Front I/O: 2 × USB 3.0, Audio In/Out

• Drive bays: 2 × 3.5″, 2 + 1 × 2.5″

• Expansion slots: 7

• Max CPU cooler height: 176 mm

• Max GPU length: 410 mm (when no side radiator is installed)

• If side radiator is installed, GPU length limited to ~ 262 mm

• Fan support:
   • Top: 3 × 120 mm or 2 × 140 mm
   • Side: 3 × 120 mm
   • Rear: 1 × 120 mm or 1 × 140 mm
   • Bottom: 1 × 120 mm or mounting space for a 3.5″ drive
   • On top of PSU shroud: 2 × 120 mm

• Radiator support:
   • Top: 120 / 140 / 240 / 280 / 360 mm
   • Side: 120 / 240 / 360 mm
   • Rear: 120 / 140 mm

• PSU length: up to ~ 210 mm

• Cable management clearance: ~ 33 mm behind motherboard tray

• Materials: ABS + SGCC steel + tempered glass
