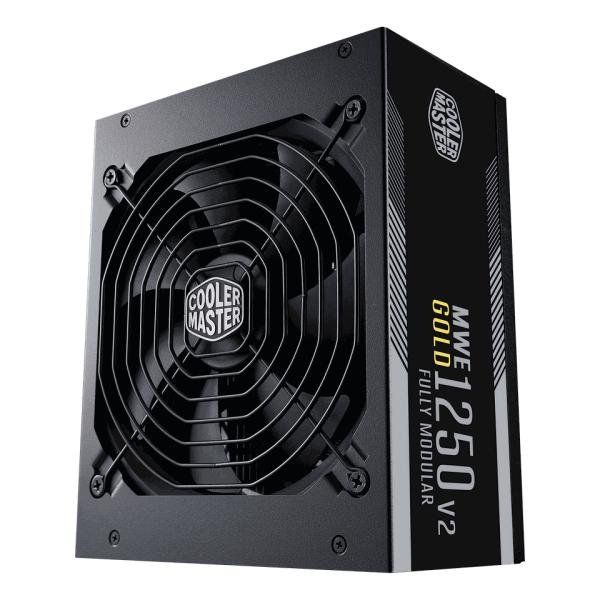

Cooler Master MWE Gold 1250 V2 Power supply 1250W (MPE-C501-AFCAG-3EEU)

Total power: 1250W
Efficiency: 90 %
Power factor correction (PFC) type: Active
Hold time: 16 ms
Power protection features: Undervoltage, Short circuit, Overvoltage, Over total voltage, Overload, Overcurrent
Total power (+3.3V): 120 W
Total power (+12V): 1248 W
Total power (+5V): 120 W
Total power (-12V): 3.6 W
Total power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 104 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Input current: 15 - 7
AC input frequency: 50/60
AC input voltage: 100 - 240
Power good signal delay range: 100 - 150

Connectivity
Motherboard power connector: 24-pin ATX
ATX Power connector: Yes
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 4
EPS power connector (8-pin): Yes
PCI Express power connector (6+2 pin): 3
Cable type: Fully modular design
Motherboard power cable length: 650 mm
SATA power cable length: 860, 740, 620, 500
Peripheral (Molex) power cable length: 860, 500, 620, 740
EPS power connector (4+4 pin): Yes

Performance
Purpose: PC
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Cooling fan bearing type: TBB
ATX version: 3.1
PSU form factor: ATX

Design
Fan diameter: 140 mm
Number of fans: 1
Cooling type: Active
Fan placement: Top
On/off switch: Yes
Product color: Black

Certificates
Certification: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

Technical details
Sustainability certificates: ErP

Weight & dimensions
Weight: 3.02 kg
Height: 86 mm
Width: 150 mm
Depth: 180 mm

Operating conditions
Operating temperature range (T-T): 0 - 50

Package information
Package weight: 3420 g
Package depth: 333 mm
Package height: 122 mm
Package width: 197 mm
Package type: Box
