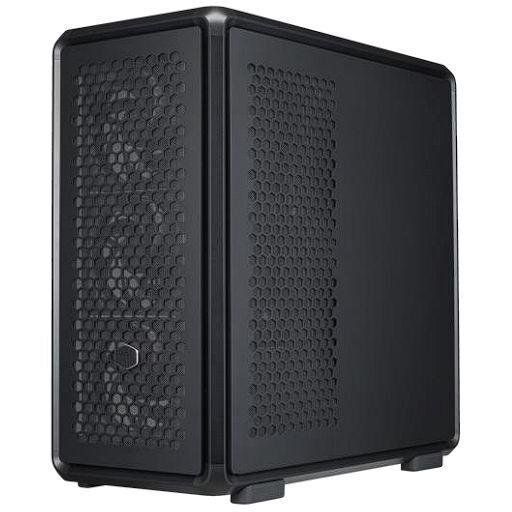

Cooler Master MasterFrame 600 ATX Computer case Black (MF600-KGNN-S00)

Model & Color

• Model Number: Black: MF600-KGNN-S00, Silver: MF600-SGNN-S00

• Color: Black

Materials

• Exterior: SGCC Steel, Aluminum

• Side Panel (Right / Left): Tempered Glass / Aluminum

Dimensions

• L x W x H (Incl. Protrusions): 531 x 261 x 544 mm

• L x W x H (Excl. Protrusions): 514 x 244 x 514 mm

• Volume: 73.6 L (Incl. Protrusions)

Motherboard Support

• Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX* , SSI-CEB* (*Conditional Support)

Power Supply Support

• ATX

PCI & Drive Bays

• PCI Expansion Slots: 8

• 5.25" Drive Bays: 0

• 3.5" Drive Bays: 0

• 2.5" / 3.5" Drive Bays (Combo): 2

• 2.5" Drive Bays: 3

I/O Panel

• USB: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C

• Audio: 1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans

• Front: Mobius 140 mm x3 (Black model, non-ARGB), SickleFlow ARGB 140 mm x3 (Silver model)

• Top: N/A

• Rear: Mobius 120 mm x1 (Black model, non-ARGB), SickleFlow ARGB 120 mm x1 (Silver model)

Fan Support

• Front: 3x 120 mm, 3x 140 mm, 2x 180 mm, 2x 200 mm

• Top: 3x 120 mm, 2x 140 mm, 2x 180 mm, 1x 200 mm

• Rear: 1x 120 mm

• Side: 3x 120 mm, 3x 140 mm

Radiator Support

• Front: 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)

• Top: 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420 mm if I/O module is moved to front panel)

• Rear: 120 mm

• Side: 240 / 280 / 360 / 420 mm

Dust Filters

• Top, Front, Bottom, Right Side Panel

Clearance

• CPU Cooler: 190 mm

• PSU: 235 mm

• Graphics Card: L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)

Included Accessories

• GPU Support Bracket (Black model)

• GPU Support Bracket / ARGB PWM Hub (Silver model)

Cable Routing

• Behind Motherboard Tray: 43 mm

Warranty

• 2 years

Size & Series

• Size: Mid Tower

• Series: MasterFrame Series
