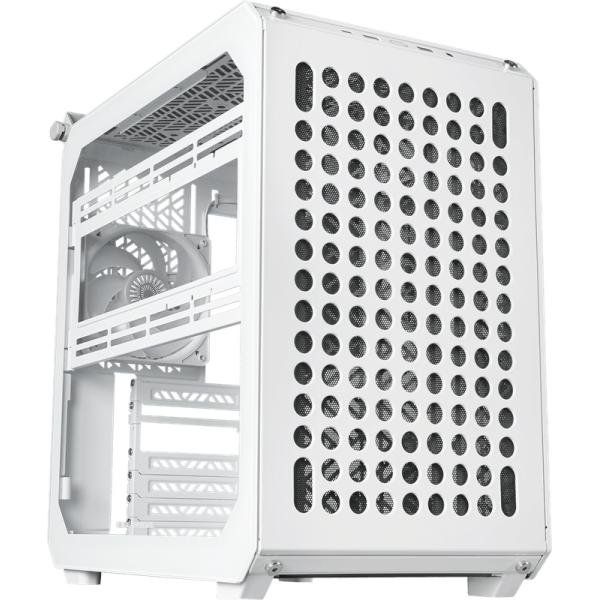

Cooler Master Q500-WGNN-S00 Qube 500 Flatpack Computer case White (Q500-WGNN-S00)

Model Number: QUBE 500 Flatpack: Q500-KGNN-S00, QUBE 500 Flatpack White: Q500-WGNN-S00
Exterior Color: Black
Materials – Exterior: Steel, Plastic, Tempered Glass (TG)
Materials – Left Side Panel: Grey TG + Steel
Dimensions (L x W x H): 406 x 231 x 415 mm (incl. protrusions), 380 x 231 x 381 mm (excl. protrusions)
Volume: 33.44 L (excl. protrusions)
Motherboard Support: ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273mm w/ ATX PSU)
Expansion Slots: 7
3.5" Drive Bays: 4
2.5" Drive Bays: 3

I/O Panel

• USB: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C

• Audio: 1x 3.5mm Combo

Pre-installed Fans

• Rear: QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM

Fan Support

• Front: 1x 120/140 mm (x2 if PSU is mounted at bottom)

• Top: 2x 120/140 mm

• Rear: 1x 120 mm

• Bottom: 2x 120/140 mm

• Left side: 2x 120/140 mm

Radiator Support

• Front: 120/140 mm (240/280 mm w/ PSU at bottom)

• Top: 120 / 140 / 240 / 280 mm (280 mm w/in 53mm thickness)

• Rear: 120 mm

• Bottom: 120 / 140 / 240 / 280 mm

• Left side: 120 / 140 / 240 / 280 mm

Clearance

• CPU Cooler: 164-172 mm (remove water cooling bracket)

• PSU: 173 mm to first GPU slot, 216 max (w/o cable management), 332 mm mounted at bottom (w/o cable management)

• GPU: 365 mm

Cable Routing – Behind Motherboard Tray: 29-32 mm
Handle: QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
Gem Mini_ QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
Dust Filters: Front, Top, Bottom, Right side
Power Supply Support: SFX / SFX-L / ATX
Size: Mid Tower
Series: QUBE Series
Back Connector Motherboard Support: No
