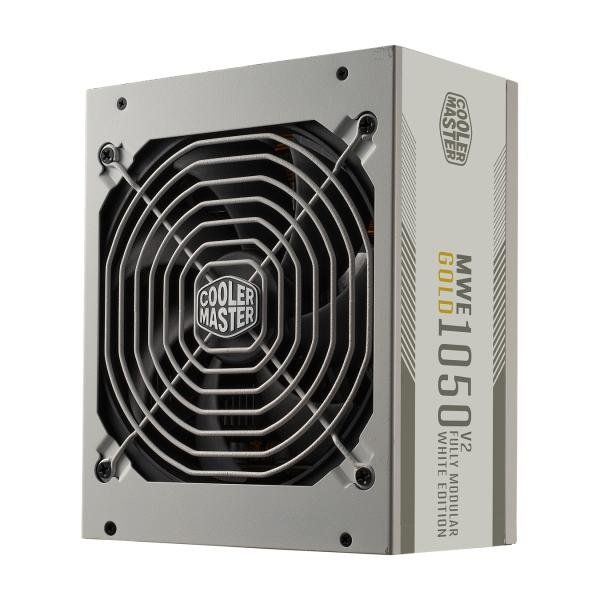

Cooler Master MPE-A501-AFCAG-3GEU MWE Gold 1050 V2 Power supply 1050W White (MPE-A501-AFCAG-3GEU)

• Model: MPE-A501-AFCAG-3G

• ATX Version: ATX Rev. 3.0

• Series: MWE Gold Series

• Category: Above 750W

• Wattage: 1050W

• Form Factor: ATX

• Modular: Fully Modular

• 80 Plus Efficiency: Gold

Electrical Specs

• Input Voltage: 100–240 V

• Input Current: 13–6 A

• Input Frequency: 50–60 Hz

• Efficiency: ≥90% @ typical load

• PFC: Active PFC

• Operating Temperature: 0–50°C

• Power Good Signal: 100–150 ms

• Hold Up Time: ≥16 ms at 100% load

• MTBF: >100,000 hours

Design & Cooling

• Dimensions (L x W x H): 180 x 150 x 86 mm

• Fan Size: 140 mm

• Fan Bearing_ FDB

Connectors

• ATX 24-pin: 1

• EPS 4+4-pin: 1

• EPS 8-pin: 1

• SATA: 12

• Peripheral 4-pin (Molex): 4

• PCI-e 6+2-pin: 3

• 12VHPWR: 1

Protection & Certification

• Protections: OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection

• Certifications: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

• Compliance: ErP 2014 Lot 3
