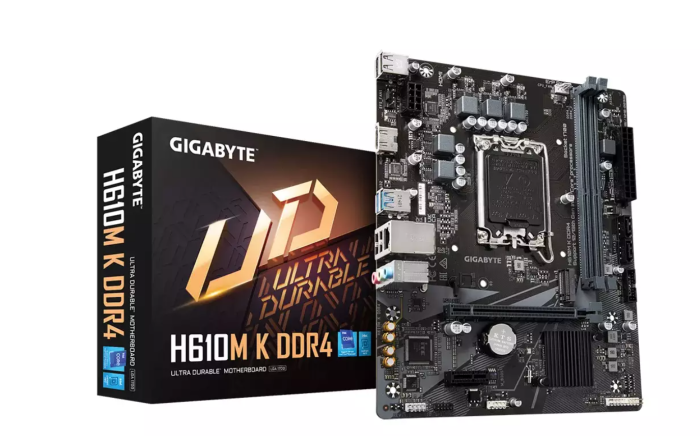

Gigabyte H610M K DDR4 Motherboard / Intel H610 / Socket LGA 1700 / Micro ATX / PCIe 4.0 / M.2 NVMe (H610M K DDR4)

The Gigabyte H610M K DDR4 motherboard is designed for home, office, and budget gaming PCs using Intel 12th and 13th Gen processors (Alder Lake & Raptor Lake). The Micro ATX form factor fits compact cases and supports DDR4 memory up to 64GB at up to 3200 MHz, fast storage via M.2 NVMe, and graphics cards via PCIe 4.0 x16. Features USB ports, Gigabit LAN, high-quality 7.1 channel audio, and extensive fan control and protection functions.

Specifications:

• Form factor: Micro ATX

• Chipset: Intel H610

• CPU socket: LGA 1700, Intel 12th & 13th Gen

• Memory support: DDR4, dual-channel, up to 64GB, XMP 2666/3200 MHz

• Expansion slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

• Storage: 1 x M.2 PCIe NVMe / SATA, 4 x SATA 6Gb/s

• Networking_ 1 x Gigabit LAN (Intel I219-V), Wake-on-LAN

• Audio: Realtek ALC897, 7.1 channel, premium audio capacitors

• USB ports: Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 1 x USB 3.2 Gen 1, 2 x USB 2.0

• BIOS: UEFI with EZ Flash, Q-Flash, Dual BIOS

• Power delivery: 6+2 phase digital VRM

• Cooling_ VRM heatsinks, support for 3 case fans, Smart Fan 5

• RAID support: 0, 1, 5, 10

• Protection features: overvoltage, short circuit, DRAM ESD

• Intel Optane Memory and Intel UHD Graphics support

• OS: Windows 10/11, Linux

• Features: Smart Fan 5, HDCP, ECC memory support, C-states, SpeedStep, TPM 2.0

• Case compatibility: Micro ATX

• Dimensions, m: Length 0.244; Width 0.217; Height 0.035

• Weight, kg_ 0.62

• Gross weight, kg_ 0.95
