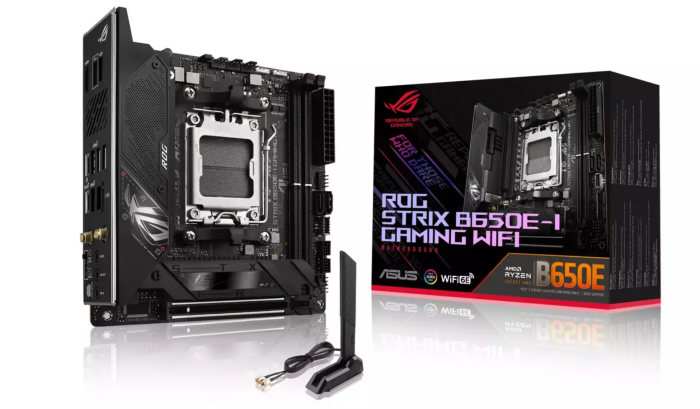

Asus Rog Strix B650E-I Motherboard / Wifi / AMD B650 / Socket AM5 / DDR5 / mini ITX (90MB1BI0-M0EAY0)

The Asus ROG STRIX B650E-I motherboard is designed for compact mini ITX builds, delivering high performance and modern features. It supports AMD Ryzen 7000 series processors, DDR5 memory with XMP overclocking, and fast storage via M.2 NVMe PCIe 5.0 and SATA ports. Integrated WiFi 6E, Bluetooth 5.2, and 2.5Gb LAN ensure stable network connectivity. The SupremeFX 7.1 audio system provides high-quality sound for gaming and multimedia.

Advanced features such as AI Overclocking and AI Cooling allow automated performance tuning, while Aura Sync RGB enables synchronized lighting with compatible devices. Protective elements like SafeSlot and reinforced PCIe slots increase durability when installing a graphics card. The compact mini ITX form factor makes it ideal for small builds without sacrificing functionality.

Specifications:

• Form factor: mini ITX

• Chipset: AMD B650

• CPU socket: AM5, supports AMD Ryzen 7000 series

• Memory support: DDR5, dual-channel, up to 64GB, XMP profiles supported

• Expansion slots: 1 x PCIe 5.0 x16

• Networking_ WiFi 6E, Bluetooth 5.2, 2.5Gb Ethernet LAN

• Audio: SupremeFX 7.1, Hi-Res Audio support, EMI protection

• USB ports:

  • Rear: 1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 2, 2 x USB 2.0

  • Internal headers: USB 3.2 Gen 1, USB 2.0

• Storage: 2 x M.2 NVMe (PCIe 5.0/4.0), 4 x SATA 6Gb/s

• BIOS: UEFI with EZ Flash, USB update supported

• Power delivery: 8+2 phase, Digi+ VRM

• Cooling_ VRM heatsinks, supports AIO and case fans, temperature sensors

• Features: AI Overclocking, AI Cooling, Aura Sync RGB, Q-LED indicators, SafeSlot, PCIe Steel Slot

• Power connectors: 24-pin ATX, 8-pin EPS for CPU

• Case compatibility: mini ITX

• Package size, m: Length 0.25; Width 0.22; Height 0.07

• Weight, kg_ 0.73

• Gross weight, kg_ 1.05
