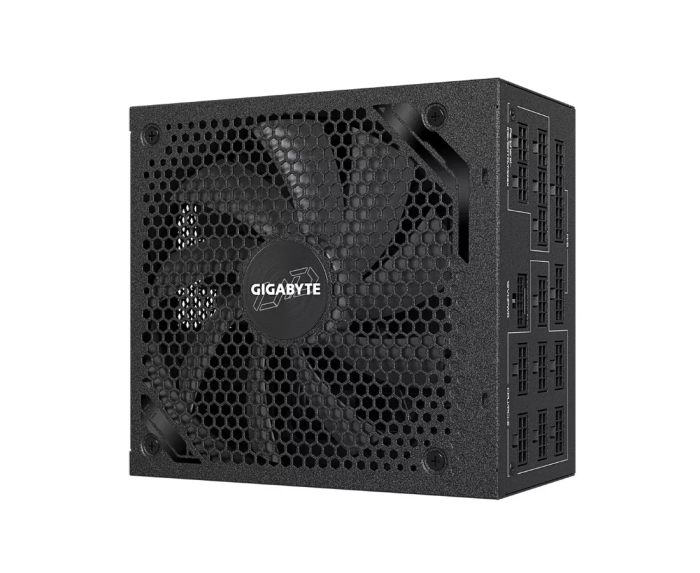

Gigabyte UD1300GM PG5 Power Supply 1300W (GP-UD1300GM PG5 1300W)

High-performance ATX power supply with 1300W output, designed for gaming and workstation systems. Fully modular cables simplify installation and improve airflow. Equipped with a 135 mm fan with smart control, noise level up to 25 dB. Japanese capacitors ensure long-lasting stability. Supports all modern protection standards: OVP, UVP, OPP, SCP, OTP. Compatible with modern GPUs and CPUs, supports ATX12V v2.4.

Specifications:
Brand: Gigabyte
Product model: UD1300GM PG5
Type: ATX
Power: 1300 W
+12V rail: 108.3 A
Input voltage: 100–240 V
Frequency: 50–60 Hz
Efficiency: up to 90%
PFC: Active
Cooling system: 135 mm fan
Noise level: up to 25 dB
Cables: fully modular, hidden routing capable
Connectors: 1×24-pin ATX, 2×8-pin (4+4) CPU, 6×8-pin (6+2) PCIe, 1×16-pin PCIe 5.0 (12+4), 8×SATA, 3×Molex
MTBF: 100,000 hours
Capacitors: Japanese
Protection: OVP, UVP, OPP, SCP, OTP, overheat protection, short circuit protection
Compatibility: ATX12V v2.4, supports PCIe 5.0 GPU
Form factor: ATX
Dimensions (L×W×H): 160 × 150 × 86 mm
Weight: 1.8 kg
Gross weight: 2.3 kg
Additional: multi-rail support, power saving, voltage stabilization, temperature control
