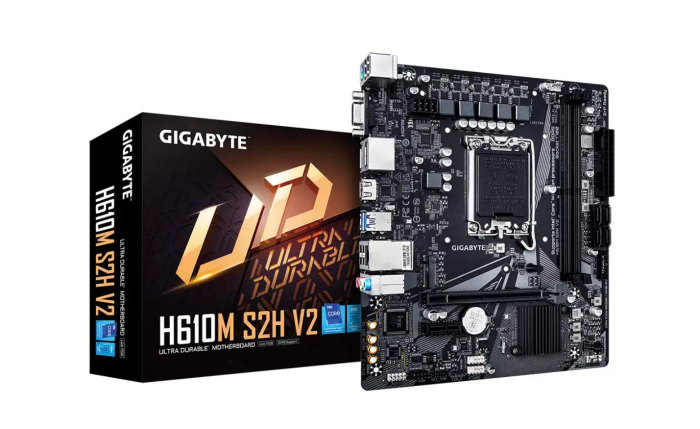

Gigabyte H610M S2H V2 Motherboard Intel H610 / Socket LGA 1700 / Micro ATX / DDR4 / PCIe 4.0 (H610M S2H V2)

The Gigabyte H610M S2H V2 motherboard is designed for home, office, and budget gaming PCs using Intel 12th and 13th Gen processors (Alder Lake & Raptor Lake). This Micro ATX board supports DDR4 memory up to 64GB, fast NVMe storage via M.2 PCIe 4.0, graphics cards via PCIe 4.0 x16, and features full connectivity for peripherals and networking. Ideal for builds balancing price and performance.

Expanded Specifications:

• Form factor: Micro ATX

• Chipset: Intel H610

• CPU socket: LGA 1700, Intel 12th & 13th Gen

• Memory support: DDR4, dual-channel, up to 64GB, XMP 2666/3200 MHz

• Expansion slots:

  • 1 x PCIe 4.0 x16 (GPU)

  • 1 x PCIe 3.0 x1 (additional cards)

• Storage:

  • 1 x M.2 PCIe 4.0 NVMe / SATA

  • 4 x SATA 6Gb/s

• Networking_

  • 1 x Gigabit LAN (Intel I219-V)

  • Wake-on-LAN support

• Audio: Realtek ALC897, 7.1 channel, High Definition Audio

• USB ports:

  • Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0

  • Internal headers: USB 3.2 Gen 1, 4 x USB 2.0

• BIOS: UEFI with EZ Flash 2, Q-Flash, Dual BIOS

• Power delivery: 6+2 phase VRM with premium chokes

• Cooling_ VRM heatsinks, support for 3 case fans, temperature sensors

• RAID support: RAID 0, 1, 5, 10

• Protection features:

  • Overvoltage protection

  • Short-circuit protection

  • DRAM ESD protection

• Smart features: Smart Fan 5, customizable fan profiles

• Intel Optane Memory support: Yes

• OS compatibility: Windows 10/11, Linux

• Integrated Intel UHD Graphics support: Yes

• Case compatibility: Micro ATX

• Dimensions, m: Length 0.244; Width 0.217; Height 0.035

• Weight, kg_ 0.62

• Gross weight, kg_ 0.95
