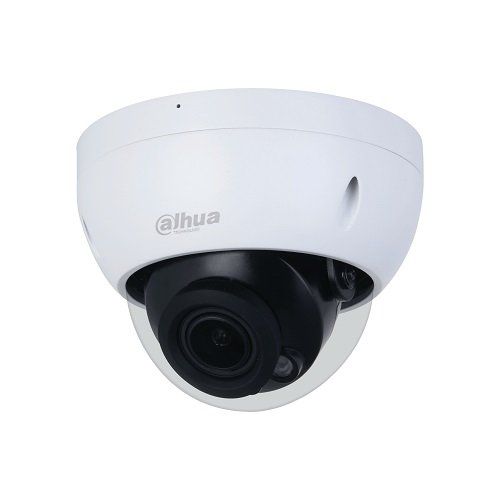

Dahua HDBW2441RZAS IP Network Camera 4MP (HDBW2441RZAS)

Camera

• Image Sensor: 1/2.9" CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.008 lux@F1.5 (Color, 30 IRE), 0.0008 lux@F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 40 m (131.23 ft) (IR LED)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 2 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–355°, Tilt: 0°–67°, Rotation: 0°–355°

Lens

• Lens Type: Motorized vari-focal
• Lens Mount: ?14
• Focal Length: 2.7 mm–13.5 mm
• Max. Aperture: F1.5
• Field of View: H: 104°–29°; V: 54°–16°; D: 125°–34°
• Iris Control: Fixed
• Close Focus Distance: 0.8 m (2.62 ft)

DORI Distance

• Lens
  • Detect: W 64.0 m (209.97 ft) / T 210.0 m (688.97 ft)
  • Observe: W 25.6 m (83.99 ft) / T 84.0 m (275.59 ft)
  • Recognize: W 12.8 m (41.99 ft) / T 42.0 m (137.80 ft)
  • Identify: W 6.4 m (20.99 ft) / T 21.0 m (68.90 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire (supports vehicle and human detection)
• Smart Search: Refined intelligent search with Smart NVR
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
• Smart Codec: Smart H.265+, Smart H.264+
• Video Frame Rate: Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1-25/30 fps)
• Stream Capability: 2 streams
• Resolution: 2688 × 1520, 2560 × 1440, 2304 × 1296, 1080p, 720p, etc.

Power Supply

• Power Supply: 12 VDC/PoE (802.3af)
• Power Consumption: Basic: 2.3 W (12 VDC), Max. 6.5 W (H.265+ with intelligence, WDR, IR on)

Environment

• Operating Temperature: –30 °C to +60 °C
• Protection: IP67, IK10
