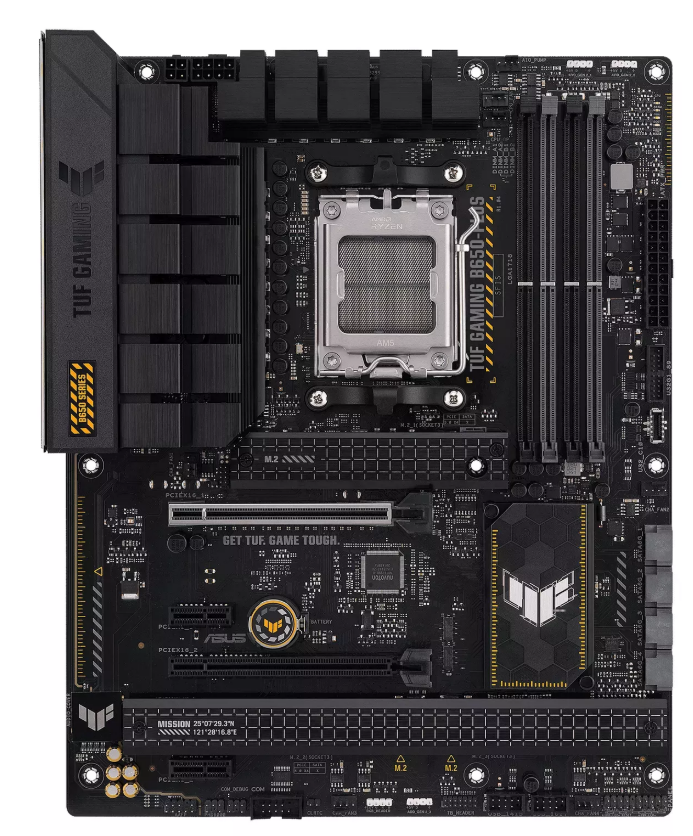

Asus TUF GAMING B650-PLUS Motherboard (90MB1BY0-M0EAY0)

The ASUS TUF GAMING B650-PLUS motherboard is built for high-performance gaming PCs based on AMD Ryzen processors with the AM5 socket. It combines the durability of the TUF series with the latest features like PCIe 5.0, DDR5, USB-C, and fast storage interfaces. With robust power delivery, M.2 heatsinks, and low-latency networking and audio, it’s a reliable platform for gamers and PC builders.

Technical specifications:

• Form Factor: ATX

• Socket: AM5 (supports Ryzen 7000 Series)

• Chipset: AMD B650

• Memory: DDR5, up to 128 GB, 4 × DIMM, up to 6400 MHz (OC)

• Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1

• Storage: 3 × M.2 (2 × PCIe 4.0, 1 × PCIe 5.0), 4 × SATA III

• Display Outputs: HDMI 2.1, DisplayPort 1.4

• USB Ports: USB 3.2 Gen 2×2 (Type‑C), USB 3.2 Gen 2, USB 2.0

• Audio: Realtek ALC S1200A, 7.1 HD

• Network: Realtek 2.5Gb Ethernet

• OS Support: Windows 11 / 10 64-bit
