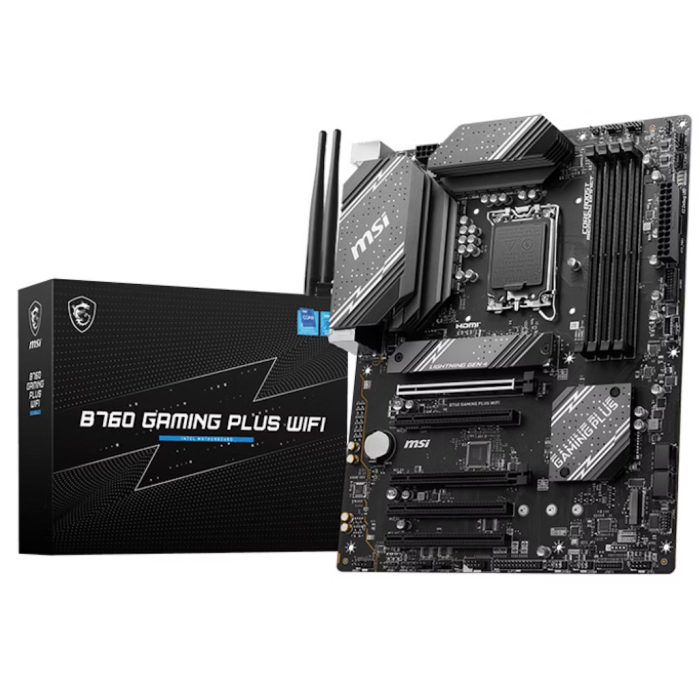

MSI B760 Gaming Plus WiFi Motherboard Intel B760 / LGA 1700 / DDR5 (7D98-007R)

The MSI B760 Gaming Plus WiFi is a modern ATX form-factor motherboard designed for building powerful gaming PCs and workstations. Based on the Intel B760 chipset, it supports Intel Core 12th and 13th Gen processors (Alder Lake and Raptor Lake) with LGA 1700 socket, delivering exceptional performance for gaming, content creation, and multitasking.

The board features 4 DDR5 slots supporting speeds up to 7000+ MHz (OC) and up to 128 GB capacity, ensuring high bandwidth and stability. For storage, it offers 3 × M.2 PCIe 4.0 x4 slots and 4 × SATA 6 Gbps ports, supporting both ultra-fast NVMe SSDs and traditional HDDs.

Expansion options include a PCIe 4.0 x16 slot with Steel Armor reinforcement for modern GPUs, along with additional PCIe slots for other devices. The integrated Wi-Fi 6E and 2.5G LAN provide stable, high-speed network connectivity, while Bluetooth 5.3 allows easy wireless device pairing.

For multimedia, it features a 7.1-channel Realtek ALC897 audio chipset with Audio Boost technology, and HDMI 2.1 plus DisplayPort 1.4 outputs with 4K HDR support. The enhanced 12+1+1 phase VRM power system ensures stability even under overclocking.

Specifications:

• Type: Motherboard

• Form Factor: ATX

• Chipset: Intel B760

• Socket: LGA 1700

• Supported CPUs: Intel Core 12th / 13th Gen (Alder Lake, Raptor Lake)

• Memory Support: DDR5, 4800–7000+ MHz (OC)

• Memory Slots: 4 × DIMM

• Max Memory Capacity: 128 GB

• Expansion Slots:

  • 1 × PCIe 4.0 x16 (Steel Armor reinforced)

  • 1 × PCIe 3.0 x16 (x4)

  • 1 × PCIe 3.0 x1

• Storage:

  • 3 × M.2 PCIe 4.0 x4 (NVMe SSD)

  • 4 × SATA 6 Gbps

• Networking_

  • 2.5G LAN (RJ-45)

  • Wi-Fi 6E (802.11ax)

  • Bluetooth 5.3

• Audio: Realtek ALC897, 7.1-channel, Audio Boost

• Rear I/O Ports:

  • 1 × HDMI 2.1

  • 1 × DisplayPort 1.4

  • 1 × USB 3.2 Gen 2 Type-C

  • 4 × USB 3.2 Gen 1 Type-A

  • 2 × USB 2.0

  • 1 × RJ-45 LAN

  • 3 × audio jacks

  • Wi-Fi antenna connectors

• Power Design: 12+1+1 phases, Digital VRM

• Cooling_ VRM & chipset heatsinks, support for up to 7 fans

• Additional Features:

  • PCIe Steel Armor

  • Intel Optane Memory support

  • Audio Boost technology

  • Resizable BAR support

  • Reinforced slots & port protection

• OS Compatibility: Windows 11, Windows 10
