Ajax 58455 Security system (58455)

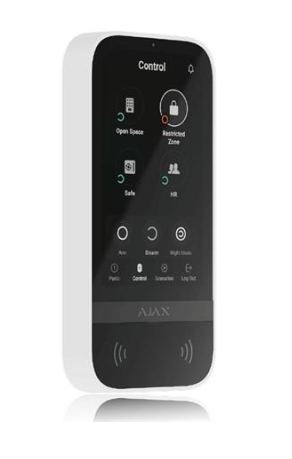

Ajax 58455 (KeyPad TouchScreen) is a wireless touch keypad with a 5″ IPS display used to control Ajax security systems. It supports access via keypad codes, Tag/Pass key fobs, or smartphone (BLE), features hand-activated wake, auto-brightness, panic/fire/assistance buttons, and integrates seamlessly with Ajax hubs (Hub 2, Hub 2 Plus, ReX) for efficient and secure system control.

Technical Specifications:

• Display: 5″ IPS touchscreen, 480 × 854 px

• Activation: hand motion, auto brightness adjustment

• Authentication: code, Pass/Tag, smartphone (BLE)

• Supports up to 200 personal codes and duress codes

• Panic buttons: panic, fire, help

• Sound notifications for alarms, door delays, system malfunctions

• Radio: Jeweller two-way, up to 1700 m range (open space)

• Frequency: 868.0–868.6 MHz

• Operating temperature: –10 °C to +40 °C

• Humidity: up to 75 % RH

• Compatible hubs: Hub 2 / Hub 2 Plus / ReX
