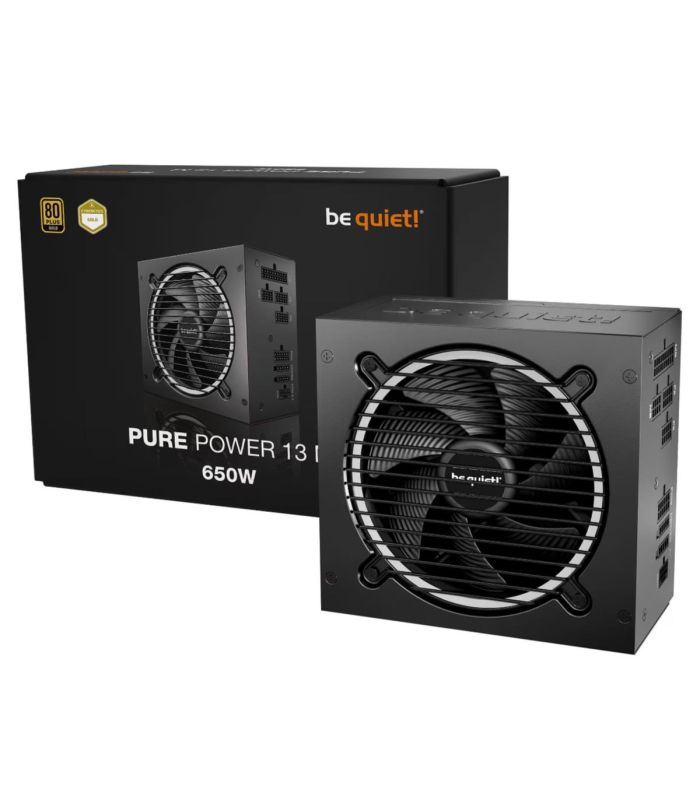

Be quiet! Pure Power 13 M 650W Power Supply 20+4 pin ATX (BP025EU)

Model: Pure Power 13 M 650W

Power: 650 W

Form factor: ATX

Type: Partially modular

Efficiency: 80 PLUS Gold (>90% typical load)

Fan: 120 mm, low noise, Silent Wings technology

CPU support: ATX 12V v2.52 / Intel and AMD platforms

Protections: OVP, UVP, OCP, SCP, OTP, OPP

Output voltages:

• +12V: 54 A

• +5V: 25 A

• +3.3V: 25 A

Voltage stability: ±3% on all rails

Cables & connectors:

• 1 x 20+4 pin ATX

• 2 x 4+4 pin EPS

• 4 x PCIe 6+2 pin

• 10 x SATA

• 4 x Molex

• 1 x FDD adapter

Cable lengths:

• ATX: 60 cm

• CPU EPS: 70 cm

• PCIe: 55–60 cm

• SATA/Molex_ 45–60 cm

Cable type: Flat black, easy to manage

Operating temperature: 0°C – 40°C

Humidity: 20–85% non-condensing

Weight: 2.1 kg

Gross weight: 2.7 kg

Package dimensions:

• Length: 0.36 m

• Height: 0.15 m

• Width: 0.22 m

GPU compatibility: Supports high-end NVIDIA and AMD graphics cards (GeForce RTX, Radeon RX)

Additional features:

• Partially modular design for cable management

• Low noise even at full load

• High voltage stability to protect components

• Suitable for gaming PCs, workstations, and multimedia PCs

• Compatible with mid- and full-size ATX cases
