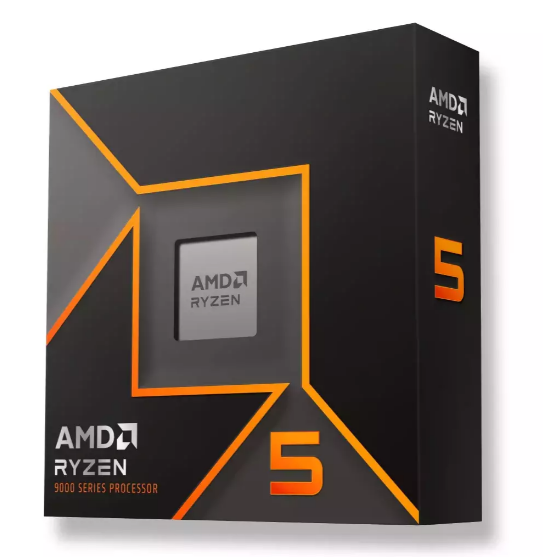

AMD Ryzen 5 9600X Processor 3.9 GHz (100-100001405WOF)

The AMD Ryzen 5 9600X is a highly efficient six-core (12-thread) desktop processor built on the Zen 5 (Granite Ridge) architecture using 4 nm fabrication. It includes integrated Radeon graphics, is fully unlocked for overclocking, and is well-suited for gaming and multitasking workloads.

Technical Specifications:

• Cores / Threads: 6

• Base Clock: 3.9 GHz

• Max Boost Clock: up to 5.4 GHz

• Cache: 32 MB L3, 6 MB L2, 480 KB L1

• Memory Support: DDR5 up to 5600 MT/s; up to 192 GB; ECC support

• PCIe: Gen 5, 24 lanes from CPU

• TDP: 65 W (PPT up to ~88 W, extended to 105 W plus turbo)

• Graphics: Integrated Radeon; up to 2200 MHz GPU clock

• Fabrication Node: TSMC 4 nm (core); I/O die on 6 nm

• Socket: AM5 (FC-LGA1718)

• Max Temperature (TjMax): 95 °C

• Overclocking Features: Unlocked multiplier, EXPO, Precision Boost Overdrive, Curve Optimizer, Ryzen Master utility

• Instruction Extensions: AES, AVX/AVX2/AVX-512, SSE4.x, etc.
