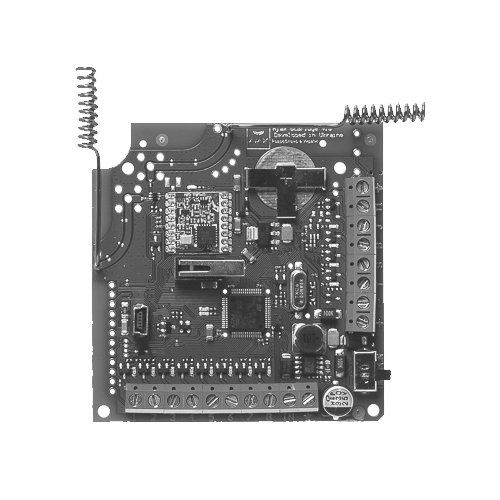

Ajax ocBridge Plus Module (000001152)

The Ajax ocBridge Plus is a wireless transceiver designed to integrate Ajax wireless detectors and devices into third-party wired and wireless security systems. It acts as a bridge between the Ajax ecosystem and security solutions from other manufacturers, allowing the use of highly reliable Ajax detectors in non-Ajax native systems.

ocBridge Plus converts signals from Ajax devices into NC/NO (normally closed/normally open) contacts, which are compatible with most central control panels. It supports up to 99 Ajax devices and provides a separate alarm output for each, allowing precise identification of the alarm source. The module uses Ajax's proprietary Jeweller radio technology, ensuring stable and encrypted two-way communication with devices up to 2000 meters in open space.

The module is configured via a computer with special software, providing flexible setting options. It also ensures status monitoring of all connected Ajax devices, including battery levels and tamper protection. ocBridge Plus is an excellent solution for upgrading existing systems, adding Ajax wireless functionality, and expanding protection capabilities without replacing the existing wired infrastructure.
