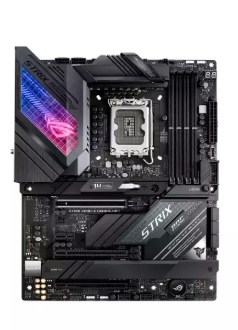

Asus Rog Strix Z690-E Gaming WiFi Intel Motherboard 1700 ATX (90MB18J0-M0EAY0)

The ASUS ROG STRIX Z690‑E GAMING WIFI is a high-end ATX motherboard for Intel LGA 1700 12th/13th-gen CPUs. Featuring an 18+1 phase power design, robust cooling, and support for DDR5, PCIe 5.0, Wi‑Fi 6E, and 2.5 Gb Ethernet. It includes five M.2 slots (two on the ROG Hyper M.2 card), multiple USB ports, and customizable Aura Sync RGB—ideal for gamers and PC enthusiasts.

Technical Specifications:

• Form Factor: ATX (305 × 244 mm)

• Chipset: Intel Z690

• CPU Socket: LGA 1700 (Intel 12th/13th Gen)

• VRM: 18+1 phases with ProCool II VRM connectors, aluminum heatsinks, heatpipe, M.2 Combo-Sink

• Memory: 4 × DDR5 slots, up to 128 GB (OC to 6600 MHz)

• Expansion Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16, 1 × PCIe 3.0 x1

• M.2 Slots: 5 total (2 on Hyper M.2 card, 3 onboard), PCIe 5.0 support

• SATA: 6 × SATA III ports

• Video Outputs: HDMI 2.1, DisplayPort 1.4

• Networking_ Intel Wi‑Fi 6E (802.11ax), Bluetooth 5.2, Intel 2.5 Gbps Ethernet with LANGuard

• USB Ports:

  • Rear: USB 3.2 Gen 2×2 Type‑C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0

  • Internal: onboard headers for USB 3.x and USB 2.0

• Audio: Realtek S1220A 7.1‑channel HD codec, with Nichicon capacitors

• RGB Lighting_ Aura Sync with customizable effects

• AI Features: AI Overclocking, AI Cooling, AI Networking, Two-Way AI Noise Cancelation
