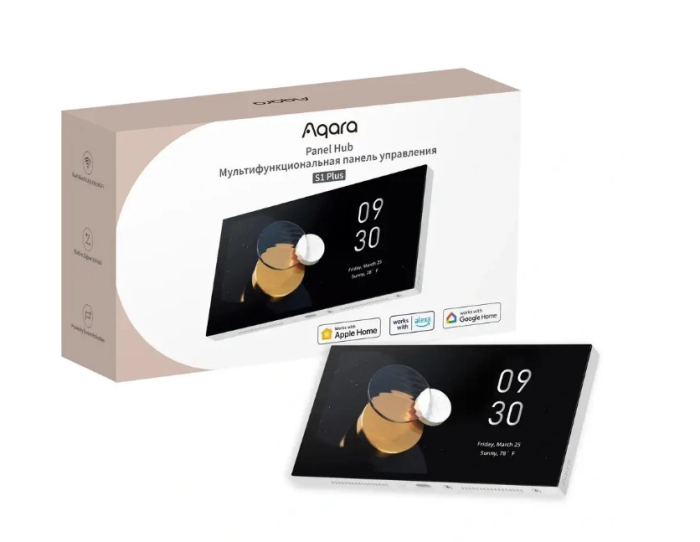

Aqara S1 Plus WiFi Control Panel (MP-K03D)

The Aqara S1 Plus (MP-K03D) is a multifunctional smart home control panel that combines the functions of a hub, touch panel, and device controller. It features a 6.9-inch touchscreen with a resolution of 1440 × 720 pixels, allowing convenient control of lighting, climate, curtains, and other Aqara devices. The panel supports Zigbee 3.0, Bluetooth, and Wi-Fi (2.4 GHz and 5 GHz) protocols, ensuring stable connectivity with a wide range of devices and ecosystems, including Matter, Apple Home, Google Home, and Alexa.

Technical Specifications:

• Model: MP-K03D

• Dimensions: 172 × 86 × 43.7 mm

• Screen: 6.9 inches, IPS, resolution 1440 × 720 pixels

• Power Supply: 100–240 V, 50/60 Hz; USB-C 5 V, 2 A

• Wireless Protocols: Wi-Fi (2.4 GHz / 5 GHz), Bluetooth, Zigbee 3.0

• Maximum Load: 2 channels, up to 2200 W (resistive), up to 400 W (non-resistive)

• Temperature Range: -10 °C to +40 °C

• Humidity: 0–95% non-condensing

• Color: Black

• Body Material: Plastic

• Control: Voice, button, smartphone, smart home scenarios

• Voice Assistants: Alexa, Google Assistant, Siri

• Backlight: Yes

• Package Contents: 1 × device, 1 × screw kit, 1 × screwdriver, 1 × user manual
