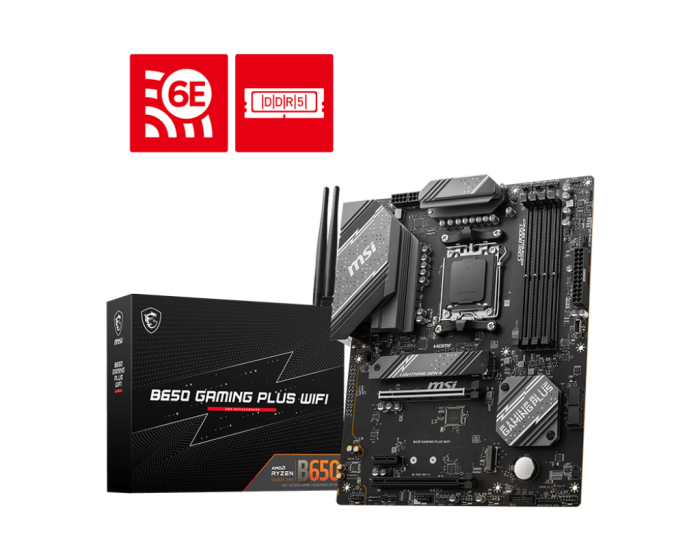

MSI B650 Gaming Plus WiFi AM5 B650 mATX (7E26-001R)

Specifications – Motherboard MSI B650 Gaming Plus WiFi

Processor

• Processor Manufacturer: AMD

• Processor Socket: Socket AM5

• Supported Processor Sockets: Socket AM5

• Maximum Memory Supported by Processor: 192 GB

Memory

• Supported Memory Types: DDR5-SDRAM

• Number of Memory Slots: 4

• Memory Channels: Dual-channel

• Supported Memory Speeds: 4800 / 5000 / 5200 / up to 7200 MHz (OC)

• Maximum System Memory: 192 GB

• Unbuffered Memory Support: Yes

Storage Controllers

• Supported Drive Types: HDD & SSD

• Supported Interfaces: M.2, PCI Express

• RAID Support: Yes

• RAID Levels: 0, 1, 10

Graphics

• Parallel Processing Support: Not supported

Internal I/O Connectors

• USB 2.0 Headers: 4

• USB 3.2 Gen 1 Headers (Type-A): 2

• USB 3.2 Gen 2 Headers (Type-A): 1

• SATA III Ports: 4

• Front Panel Audio Header: Yes

• Front Panel Header: Yes

• CPU Fan Header: Yes

• Chassis Intrusion Header: Yes

• TPM Header: Yes

• RGB LED Header: Yes

Rear I/O Ports

• USB 3.2 Gen 1 Type-A Ports: 4

• USB 3.2 Gen 2 Type-A Ports: 3

• USB 3.2 Gen 2 Type-C Ports: 1

• HDMI Ports: 1 (version 2.1)

• DisplayPort Ports: 1 (version 1.4)

• Ethernet LAN (RJ-45): 1

• S/PDIF Out Port: Yes

Network

• Wired LAN: Yes

• LAN Speed: 2.5 Gigabit Ethernet

• Wi-Fi_ Yes

• Wi-Fi Standard: Wi-Fi 6E (802.11ax)

• Supported Wi-Fi Standards: 802.11a/b/g/n/ac/ax

• Bluetooth: Yes (version 5.3)

Features

• Chipset: AMD B650

• Audio Chip: Realtek ALC897

• Audio Output Channels: 7.1

• Form Factor: ATX

• Colour: Black

• Chipset Family: AMD

• Supported Operating Systems: Windows 10 x64, Windows 11 x64

Expansion Slots

• M.2 (M-Key) Slots: 2

• PCI Express x16 (Gen 3.x) slots: 4

BIOS

• BIOS Type: UEFI AMI

Dimensions

• Width: 243.8 mm

• Depth: 243.8 mm
